German Mahr roughness profilometer SD 140

Technical Specifications：

Brand: mahr

Model: MarSurf SD 140

X-axis resolution: 10nm

Clamping table size: 390 * 430mm

Working temperature: 20C

Voltage: 220V

Power: 160VA

Power: 160VA

Dimensions: 915x610x1032mm

Weight: 180kg

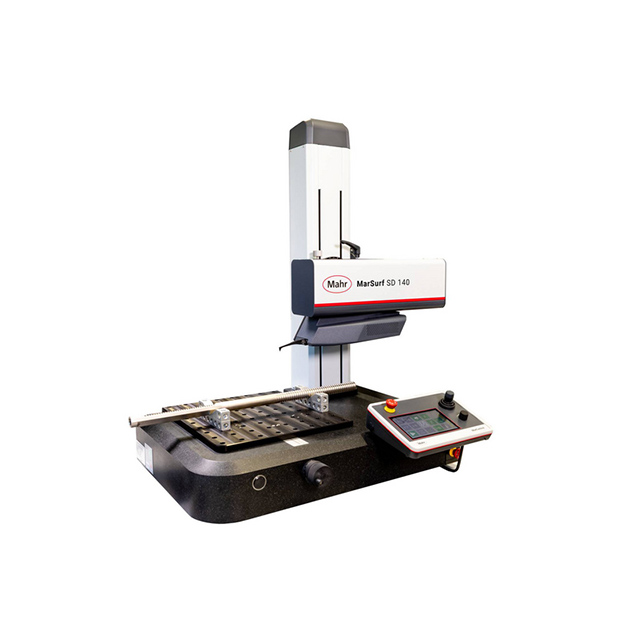

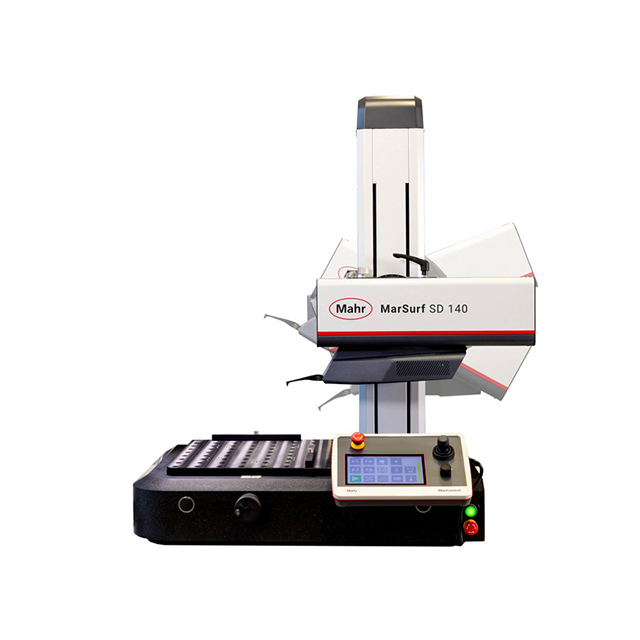

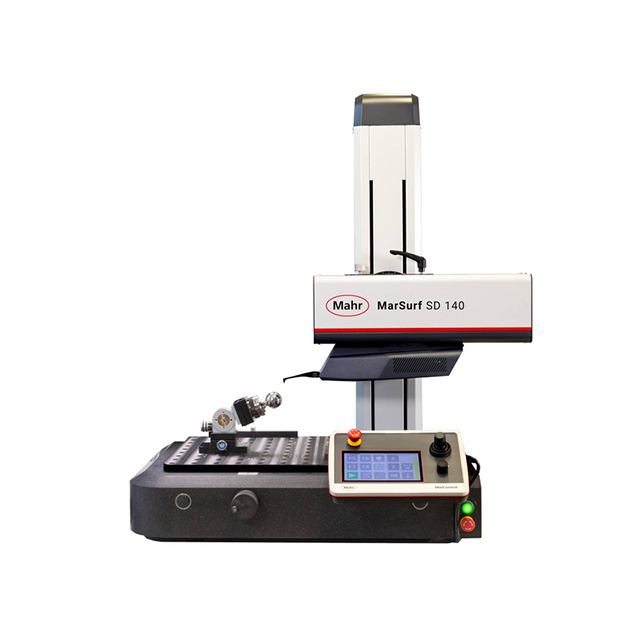

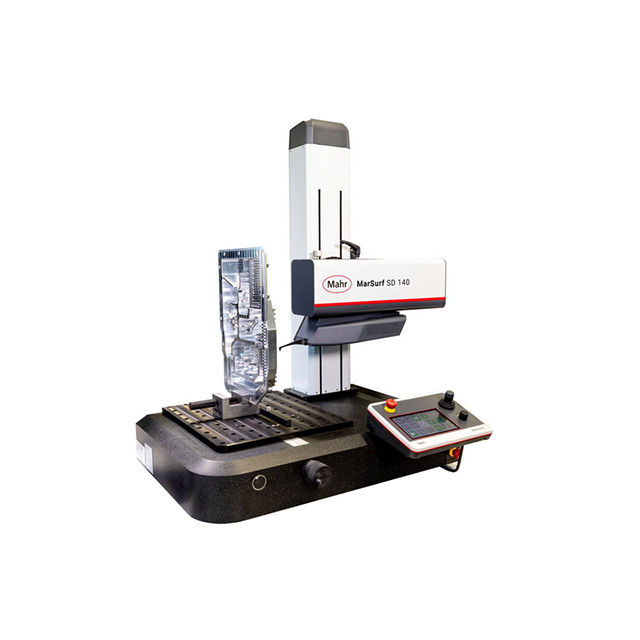

As a new entry-level roughness and profile integrated machine from Marte, this instrument can simultaneously measure roughness and profile in a single measurement. The measurement table is made of aluminum alloy and can be easily moved with the provided handle. The innovative 50 mm grid plate with hole spacing allows for more flexible and convenient positioning and clamping. The manual column enables quick vertical movement while also providing fine adjustment.

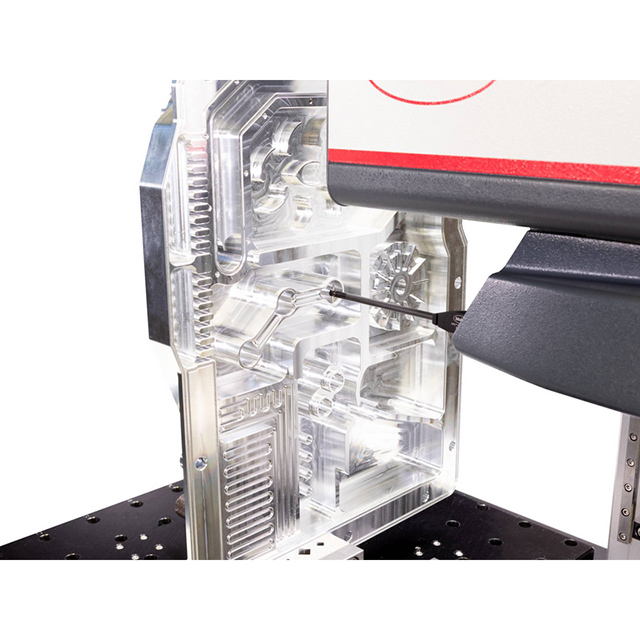

Adopting the latest developed S7 probe sensing system, one scan can simultaneously analyze roughness and contour. Using a 100 mm long measuring rod, the range can reach 10 mm, and using a 250 Mm long measuring rod, the range can reach 25 mM. The force adjustment range is 0.7 mN to 30 mN, which can be adjusted through software.

Unique magnetic pole interface, tool free replacement of the pole. Load calibrated measuring rods without the need for recalibration, saving time and effort. The measuring rod is equipped with a built-in chip, and the system can automatically recognize the measuring rod and match calibration data with the measuring force, without the need for human operation, eliminating the possibility of human operation errors and ensuring the safety and accuracy of data to the maximum extent.

Advantage：

• Roughness and contour detection only require one scan

• Quickly switch measuring rods without the need for tools

• The measuring rod is equipped with a built-in chip for automatic recognition

• Automatic matching of measuring rods for force measurement

• Align the positioning strip of the clamping plate with the measuring axis to save clamping adjustment time

• Flexible and innovative mounting plate: 390mm x 450mm large size 50mm hole spacing grid plate
