German Mahr portable roughness tester PS 10

Technical Specifications：

Brand: mahr

Model: PS10

Measuring range mm: 0 - 15 mm

Measuring force (N) 0.00075N

Probe tip radius 2 µm

Working temperature: 20C

Use:Battery

Dimensions:160 mm x 77 mm x 50 mm

Weight: 1 kg

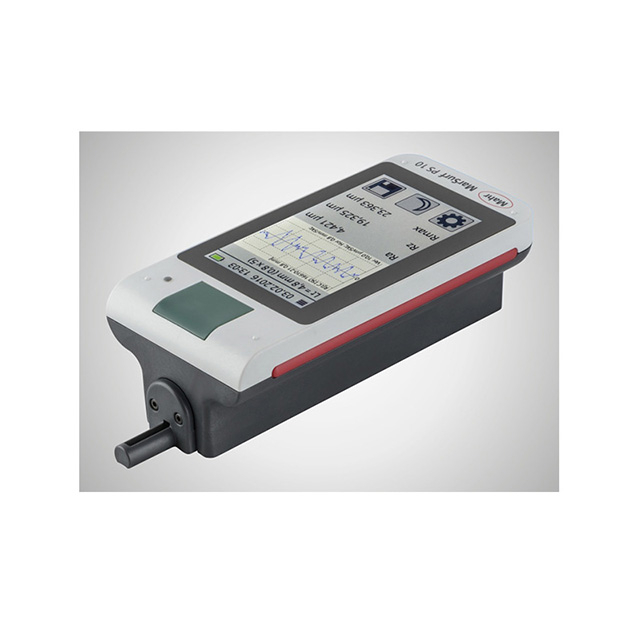

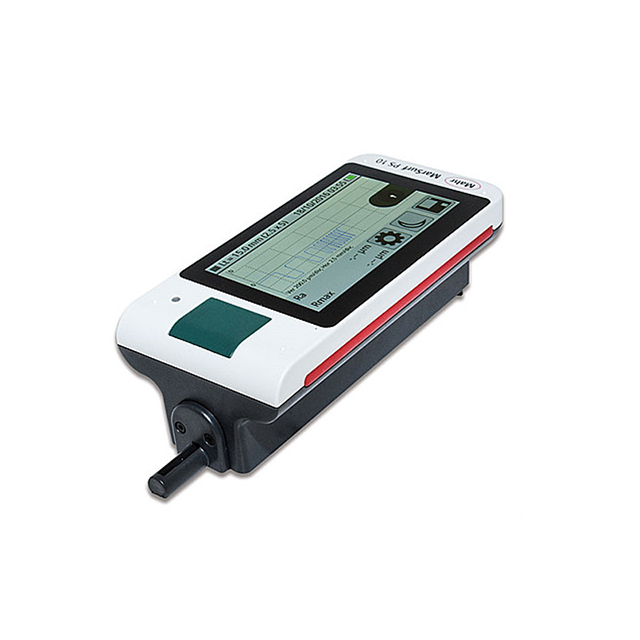

The MarSurf PS 10 is an entry-level instrument for surface measurement：Its simple and intuitive operation, along with numerous safety features including automatic cutoff, make the device as easy to control as a smartphone.Due to its compact size, it is also ideal for location-independent measurements—vertical, horizontal, and even aerial measurements (if necessary).

Thanks to its detachable drive unit, the MarSurf PS 10 offers flexible usability in production settings. This measuring instrument offers three ordering options, enhancing flexibility：Model with 2 μm and 5 μm probe tips, and equipped with a lateral drive unit (MarSurf PS 10 C2).

major advantage

Simple, smart, mobile

Easy and intuitive operation: Just as simple as using a smartphone

Large 4.3-inch TFT touch display with lighting

Adjustable display screen

Under your control, compact and lightweight (approximately 500 g)

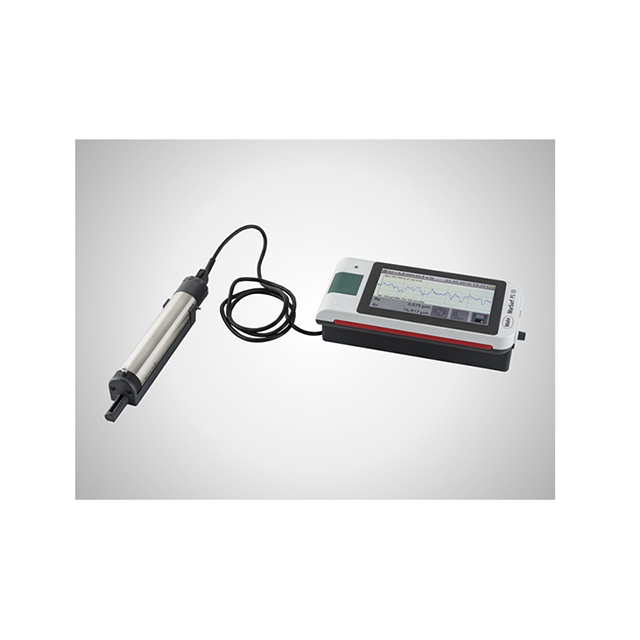

Instrument flexibility: Removable drive unit

31 parameters: Provide the same functional range as laboratory instruments.

product superiority

A powerful all-around athlete

Data backup as TXT, X3P, CSV, and PDF files

Create a complete PDF plan directly on the measurement instrument

Enter customer notes for the PDF solution directly on MarSurf PS 10.

Battery-powered: Can perform over 1,200 measurements without charging the instrument.

The integrated, removable roughness standard component ensures error-free operation.

You can quickly access the desired functions through the favorites in the display.
