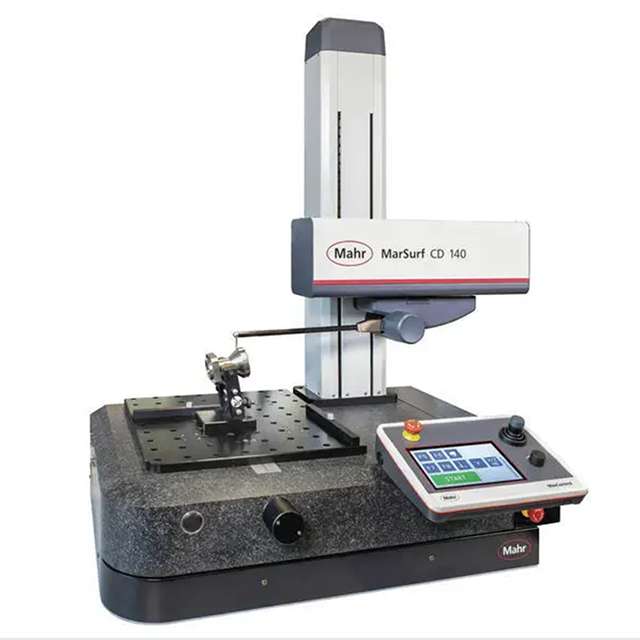

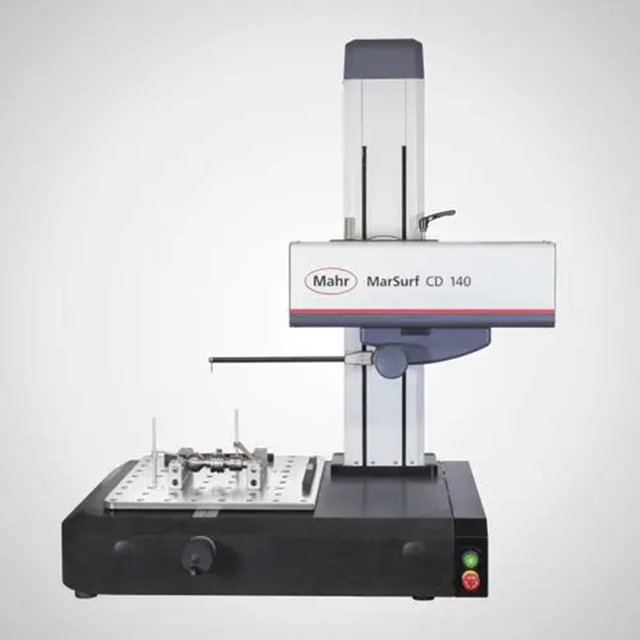

German Mahr profilometer CD140 surface measuring instrument

Technical Specifications：

Brand: mahr

Model: MarSurf CD 140

Positioning speed: 0.1-200mm/s

Measurement range z: 70mm

X-axis travel: 140mm

Measurement speed: 0.1-10mm/s

Deviation of the guide rail itself: 1um/140mm

Measuring needle length: 350mm

Size: 572x905x822mm

Power supply: 220V

Details：

Instruments from the MarSurf CD, MarSurf GD and MarSurf VD series are optimized to speed up measur ing processes and simplify handling. Enjoy maximum flexibility and maximum reliability with improved precision.

All machines in the MarSurf family run on a common platform. This has been completely overhauled to meet the exact requirements of modern-day quality assurance – for success in measuring rooms and pro duction alike.

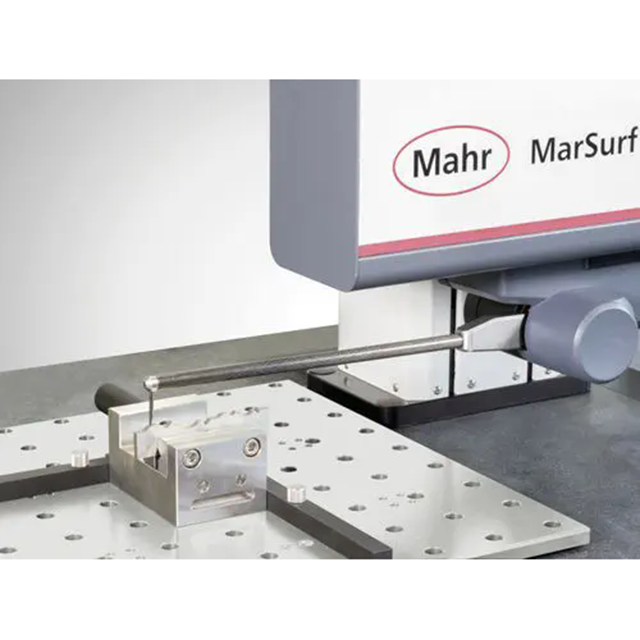

The probe system and probe arm determine which measuring task the measuring system is used for – depending on your individual needs.

One platform, many advantages:

Short measuring times thanks to high axis speeds and automated measuring sequences.

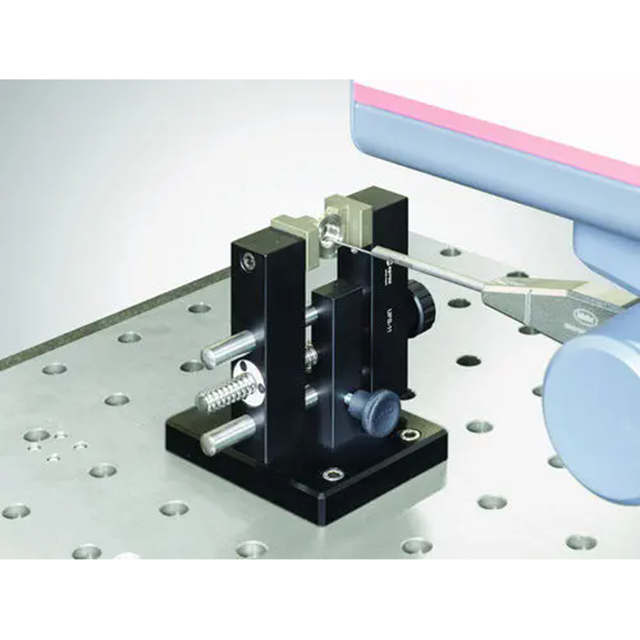

Simple, fast mounting and changeover thanks to innovative clamping system.

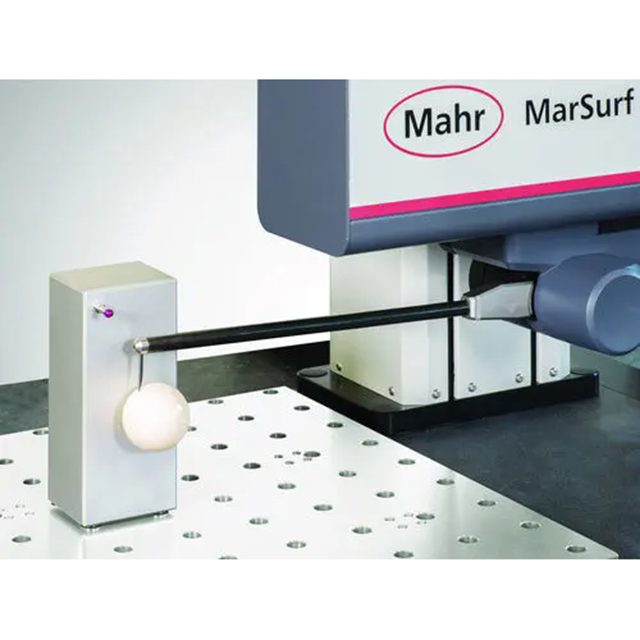

Magnetic mount for changing the probe arm quickly without the need for tools.

Wide range of probes for virtually any measuring task.

Spacious support plate and large measuring range: ideal for measuring large workpieces.
