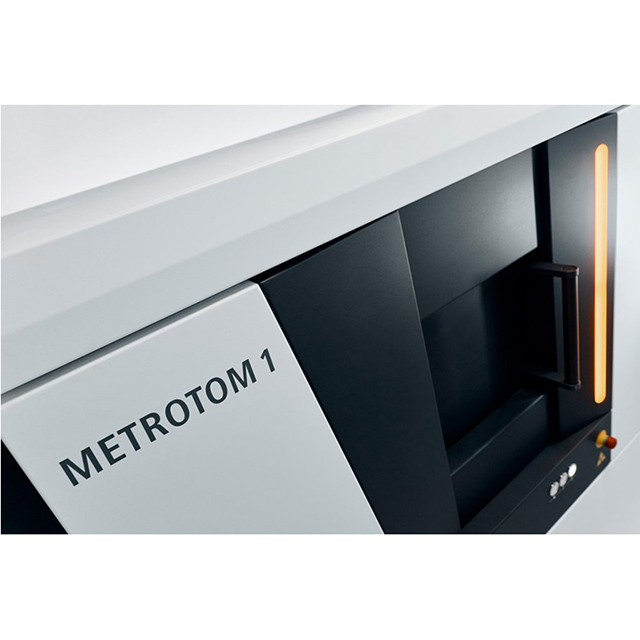

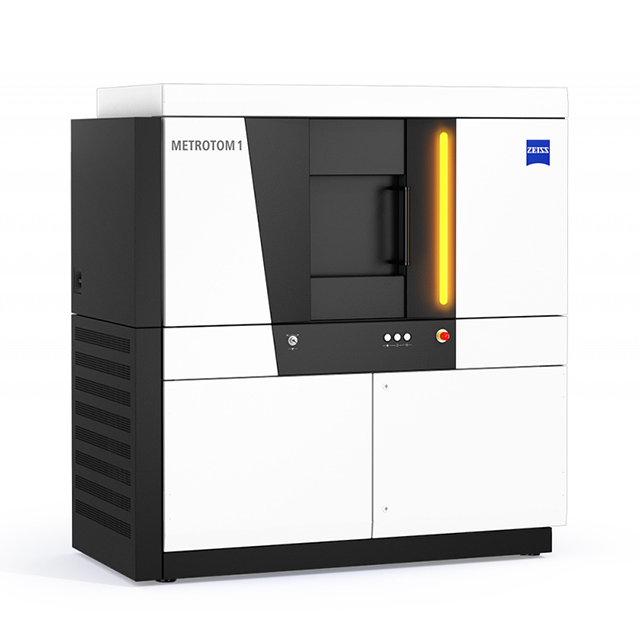

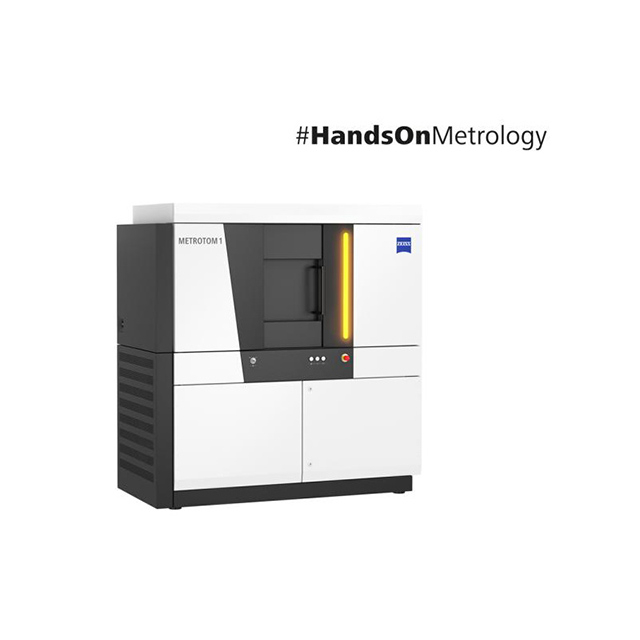

Zeiss Industrial CT METROTOM

Technical Specifications：

Measuring principle: X-ray computed tomography

X-ray tube voltage: up to 225 kV

Detector type: Flat-panel detector

Max spatial resolution: approx. 4.0 µm

Accuracy (MPE): approx. 4.0 + L/100 µm

Max workpiece size: up to Ø615 × 1500 mm

Max workpiece weight: up to 50 kg

Software: ZEISS INSPECT X-Ray

Measuring mode: Stop-and-go / VAST scan

Reconstruction: Feldkamp algorithm

Non-destructive internal inspection capability

High-resolution 3D volumetric measurement

Dimensional measurement and defect analysis in one system

Suitable for complex internal geometries

Large measuring volume for bigger parts

High X-ray penetration capability (225 kV)

Advanced flat-panel detector technology

Powerful ZEISS INSPECT X-Ray software

Automated analysis and evaluation

Ideal for automotive, casting and electronics industries

ZEISS METROTOM 1500 is an advanced industrial CT system designed for non-destructive inspection and dimensional measurement of complex components. It enables complete internal and external analysis in a single scan, making it ideal for large parts, defect detection, and quality control in demanding industrial applications.
