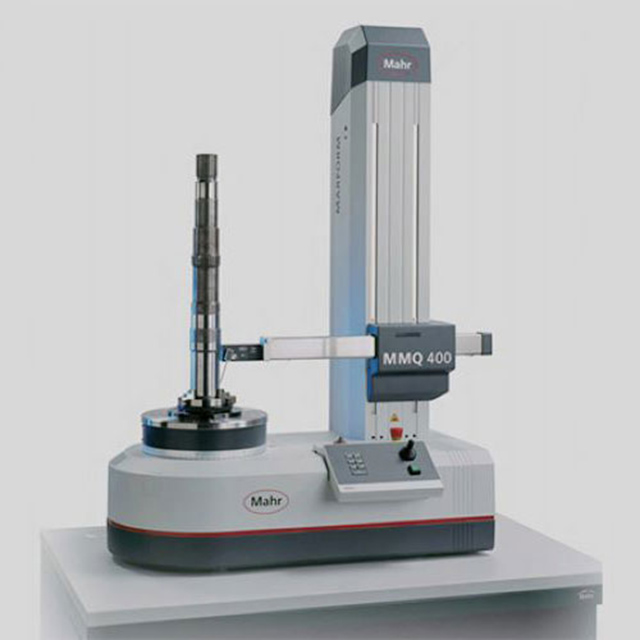

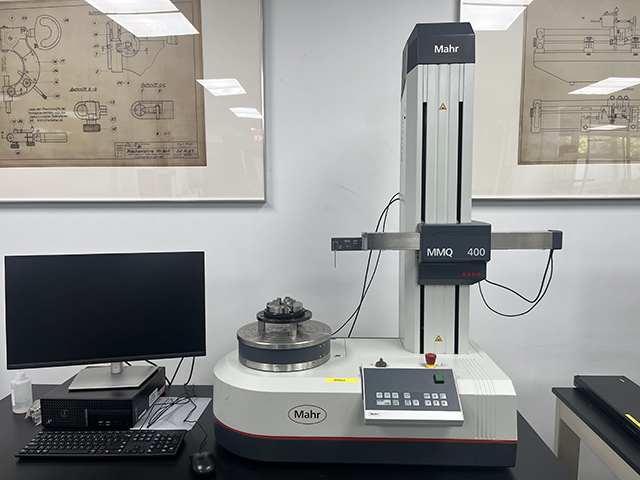

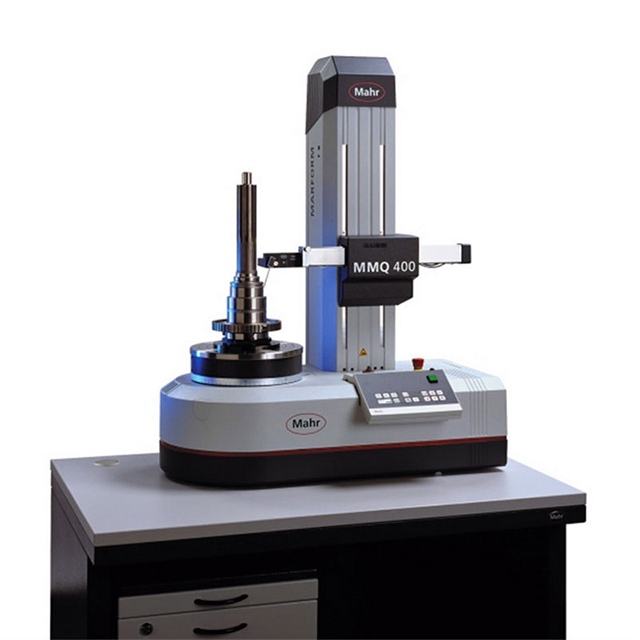

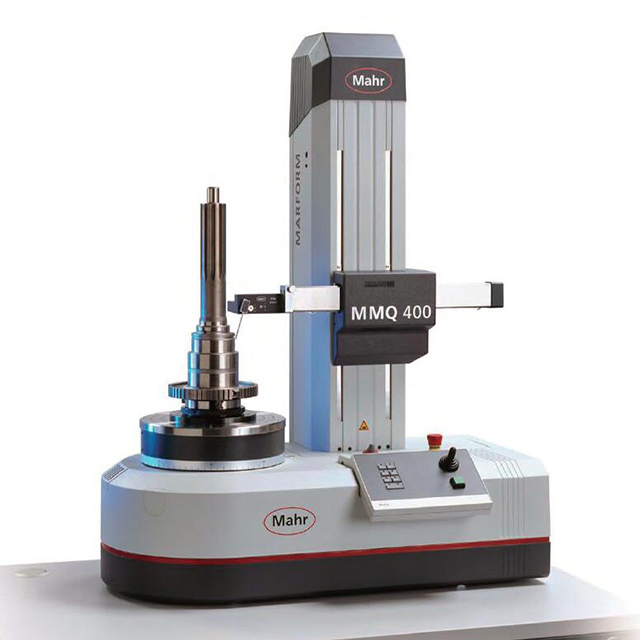

German Mahr roundness tester MMQ 400

Technical Specifications：

Brand: mahr

Model: Marform MMQ 400

Axial running deviation C-axis: 0.02 + 0.0001                   Straightness deviation Z-axis: 0.3

Table diameter: 285 mm

Working temperature: 20C

Voltage: 115 - 230 V +6% -10%

Power: 180VA

Dimensions:1080 x 840 x 550mm

Weight: 245kg

To Configure:

• X=180, Z=350 manual turntable

• X=180, Z=350 automatic turntable

• X=280, Z=500 manual turntable

• X=280, Z=500 automatic turntable

• X=280, Z=900 automatic turntable

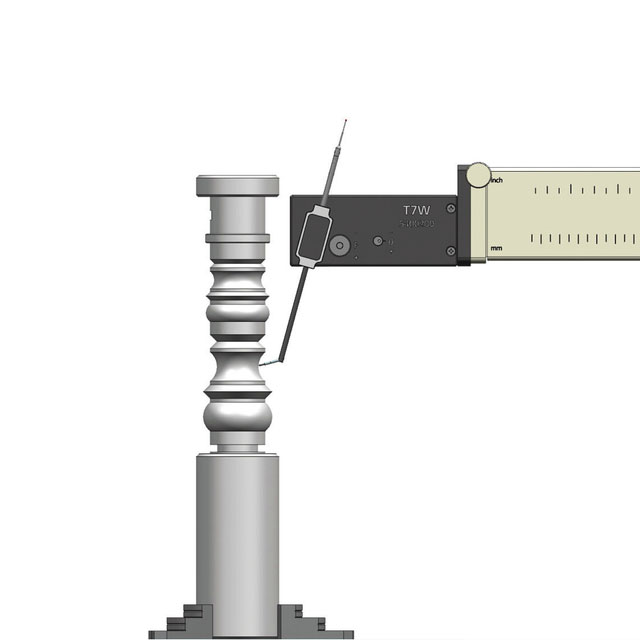

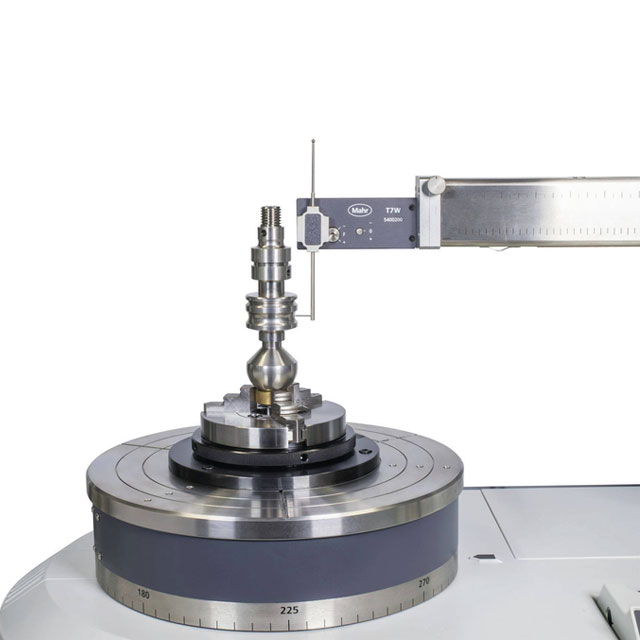

• Automatic turntable comes standard with T7W

• Manual turntable can be equipped with T20W/T7W

• Standard AdvancedForm software

• Z=900 column machine optional

• Electric tailstock

• Measurement of roughness and straightness

• Top positioning

• No need to adjust the heart level

• Switchable tailstock system

• MMQ 400 with automatic tailstock

• Column Z=900 with tailstock Z-direction effective range 650 mm

• highly automated

• Powerful operating interface

• Reliable measurement results

• Maintenance free mechanical bearings, reliable quality

• Automatic probe saves time

• Bidirectional force measurement and multiple measuring arms

• Multi level software structure with strong scalability
