ZwickRoell Vickers hardness tester

Technical Specifications：

Load range：0.098 ...612.9 N (0.01 ...62.5 kg)

Maximum speed, Z-axis：1.2 mm/sec到20 mm/sec

size(WxDxH)：550 x 450 x 700 (mm)

weight：85 kg

Maximum test height：260 mm

power frequency：50/60 Hz

power consumption：120 watt

test bench(W x D)：Ø 90 mm

Evaluate camera resolution: 12 million pixels with CMOS sensor

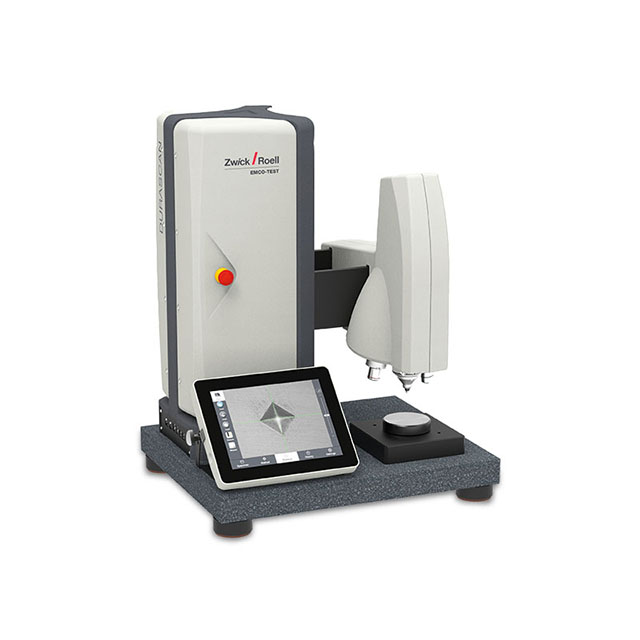

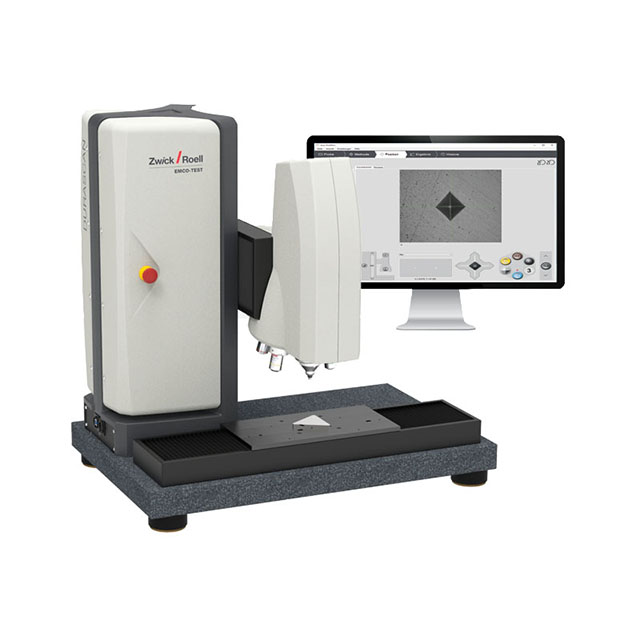

The DuraScan microhardness tester is an ideal choice for solving various testing tasks, providing an efficient laboratory assistant for your hardness testing. According to current standard specifications, a wide range of application scenarios can be covered through the use of templates and help settings. Hardness value determination can be carried out for various materials and shapes. It can be tested on steel, aluminum, sintered parts, copper, and various other materials, whether they are flat, tubular, or spherical in shape.

The DuraScan series is capable of performing all Vickers, Knoop, and Brinell hardness testing tasks within a load range of 0.25 g to 62.5 kg, and is characterized by high efficiency, flexibility, and process reliability. The DuraScan 10/20 model is an ideal semi-automatic microhardness tester for simple applications. The fully automatic DuraScan 50/70/80 models are an ideal choice for handling complex and comprehensive testing tasks. The entire testing sequence, from setting indentation parameters to displaying hardness values, is fully automated, which minimizes the impact of operators.

Product advantages：

Load range 0.00025-62.5 kg

The ideal choice for Vickers, Knoop, and Brinell tests

Automatic test sequence

Controlled through touch screen or computer

Semi automatic and fully automatic models
