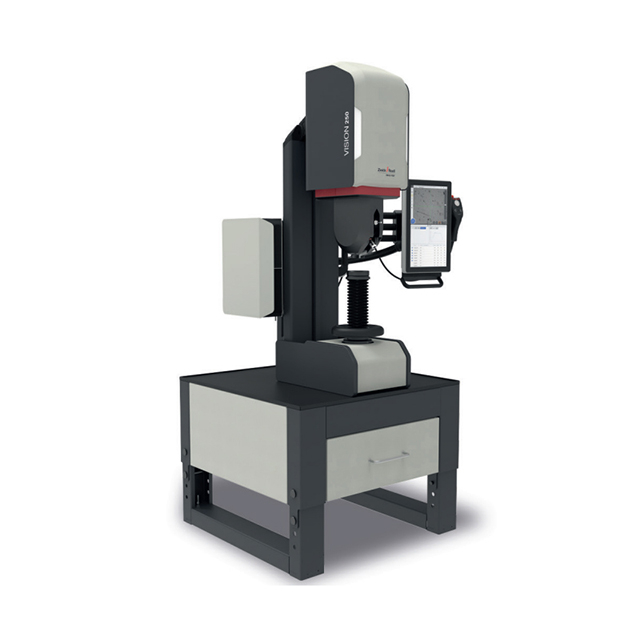

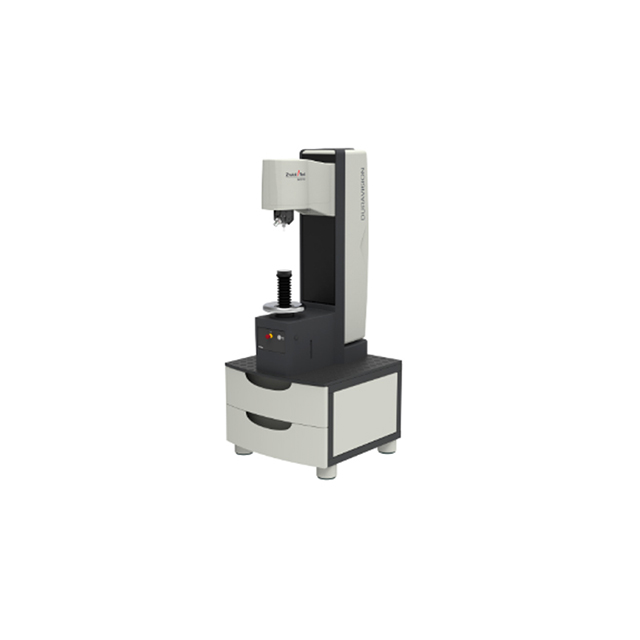

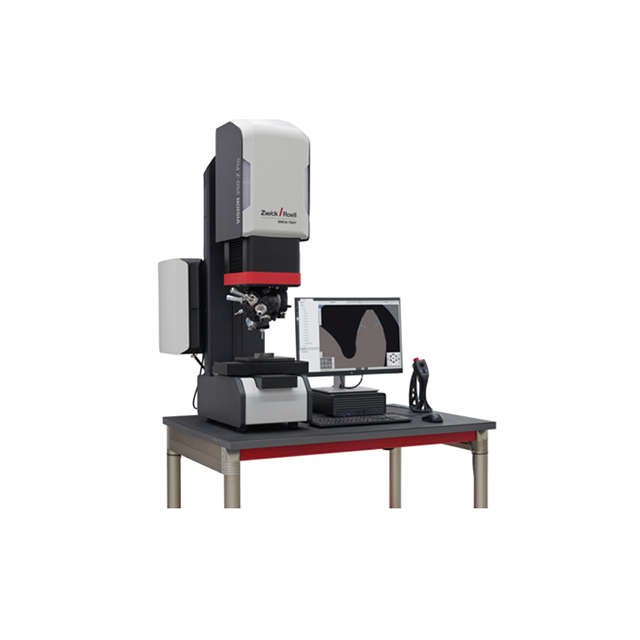

ZwickRoell Universal hardness tester

Technical Specifications：

Load range：0.3-250 kg (optionally from 10 g)

size：305x680x1271.5 (mm)

size：305x680x1271.5 (mm)

Maximum test height：220 mm

power frequency：50/60 Hz

power consumption：120/50 W

test bench：Ø 90 mm

Vision Hardness testers can efficiently perform various testing tasks and support various applications from micro to macro hardness testing.

Even in harsh industrial environments, Vision can operate stably and reliably, and always meet the requirements of current relevant standards.

With intuitive user guides, practical templates, and flexible operation panels, any user can perform hardness testing in a simple and ergonomic manner. From flat surfaces to pipes and spherical specimens, this machine can accurately measure the hardness values of materials and components of various shapes, regardless of whether the specimens are made of steel, copper, or aluminum.

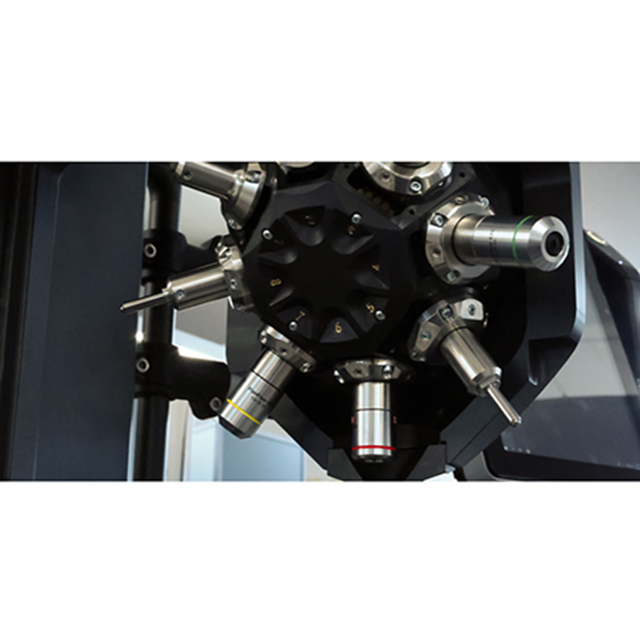

VisionLine's innovative tool replacement system can support up to eight freely configurable test positions, allowing for quick switching between different test methods and improving instrument flexibility and efficiency.

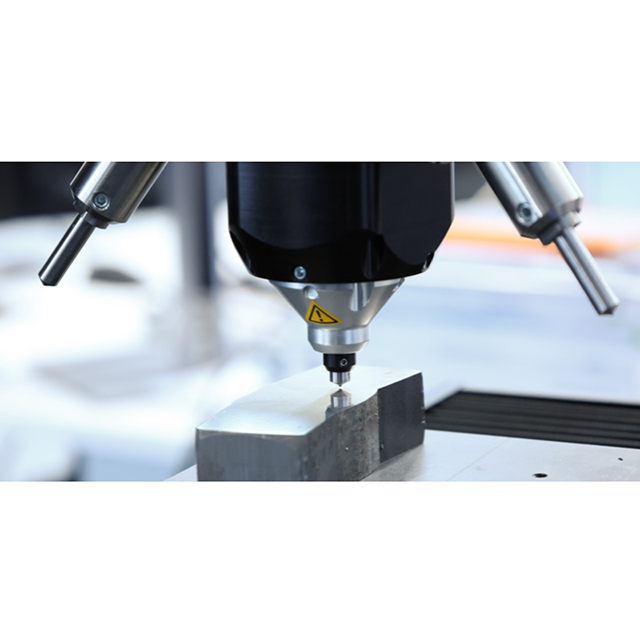

The high-precision optical system ensures clear display of hardness indentation. The software can automatically adjust the brightness, focus, and evaluation function of the indentation. Even if the surface condition of the test is poor, AI based algorithms can provide reliable experimental results.

Product advantages：

Load range 0.01 kg -3000 kg.

Very suitable for Vickers, Knoop, Brinell, Rockwell, carbon testing, and plastic testing

Support testing of clamped and non clamped components.

Automatic brightness control and AI supported evaluation functions can significantly improve efficiency.

Simple control through touch screen, computer or motion control panel.

Divided into semi-automatic and fully automatic models based on component positioning methods.
