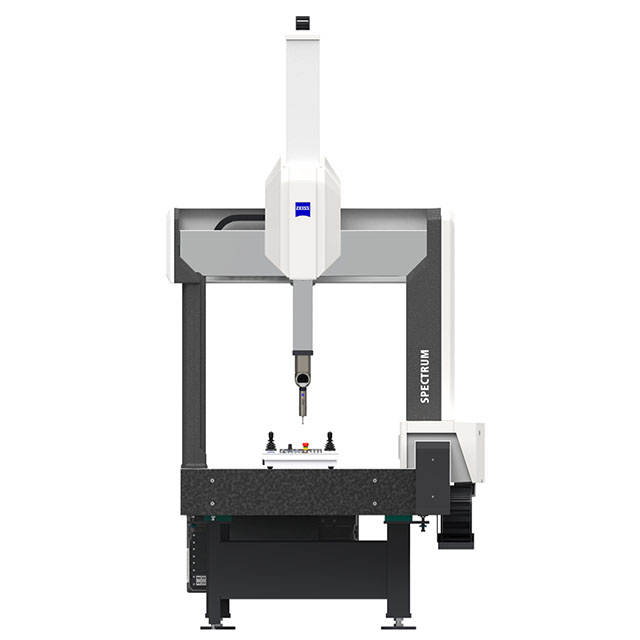

Zeiss CMM SPECTRUM series coordinate measuring machine

Technical Specifications：

Type: Bridge-type CMM with movable bridge

Operating mode: CNC / Motorized

Measuring range: up to 900 × 1800 × 600 mm

Accuracy (MPEE): 1.7 + L/300 µm

Repeatability (R0): up to 1.7 µm

Max CNC speed: 346 mm/s

Acceleration: 866 mm/s²

Probe system: VAST XXT / VAST XT gold

Scanning rate: up to 500 points/s

Software: ZEISS CALYPSO

Controller: ZEISS C99M

Resolution: 0.08 µm

High precision measurement performance

Stable bridge-type structure

ZEISS premium quality and reliability

Wide range of measuring sizes available

Flexible probe system compatibility

Support for scanning and point measurement

Powerful ZEISS CALYPSO software

High measurement speed and efficiency

Suitable for production and quality control

Cost-effective entry-level CMM solution

Origin: Germany technology

ZEISS SPECTRUM is a bridge-type coordinate measuring machine designed for reliable and efficient dimensional inspection. It offers an optimal balance between accuracy, flexibility, and cost, making it an ideal solution for small to medium-sized parts in production and quality control applications.
