In today’s fast-evolving industrial landscape, maintaining product integrity, material reliability, and manufacturing efficiency is no longer optional—it’s essential. One of the most critical tools driving these outcomes is metallographic equipment. From microscopic material analysis to root cause investigation in structural failures, metallography plays a pivotal role in helping engineers, quality control teams, and researchers understand material properties in unparalleled detail.

This article explores the key functions of metallographic equipment, its importance in quality control and failure analysis, and why it’s indispensable in modern material testing labs.

What Is Metallographic Equipment?

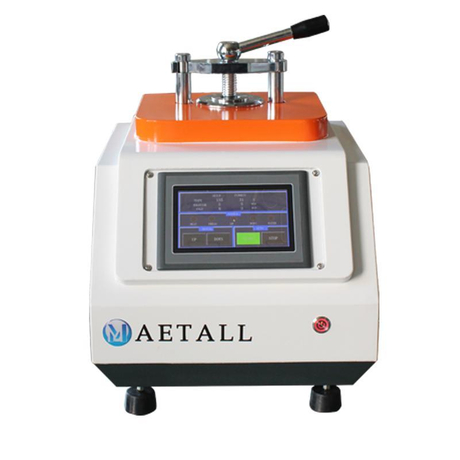

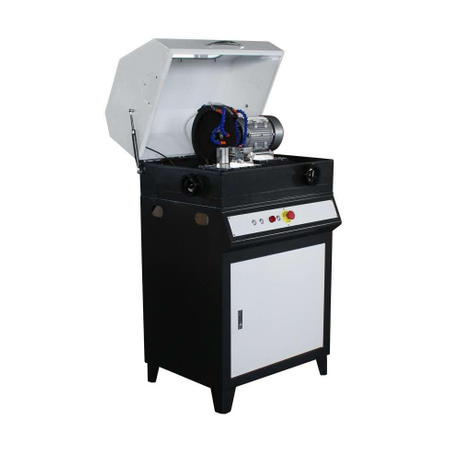

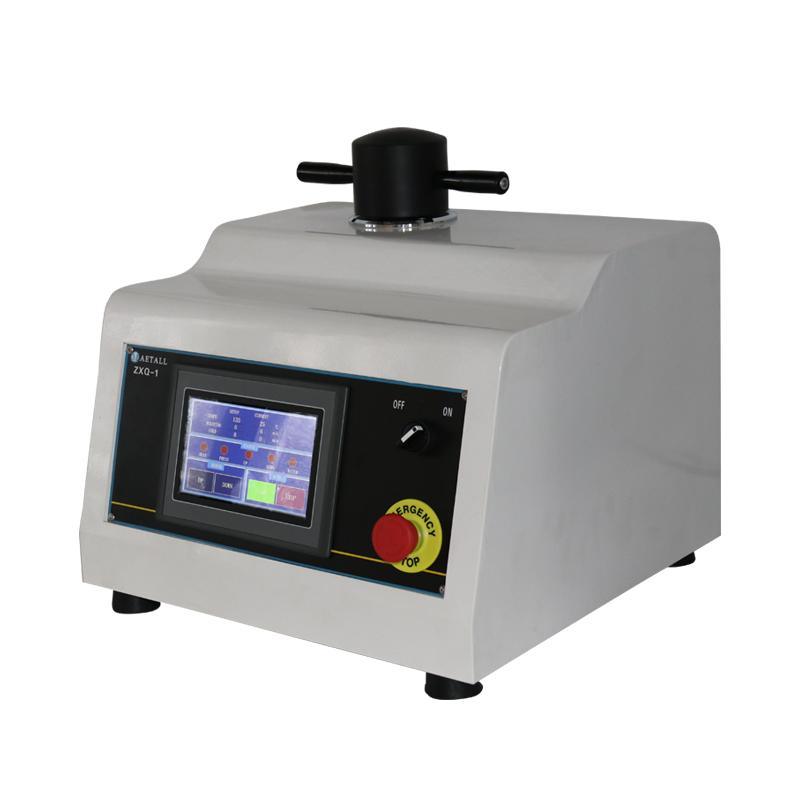

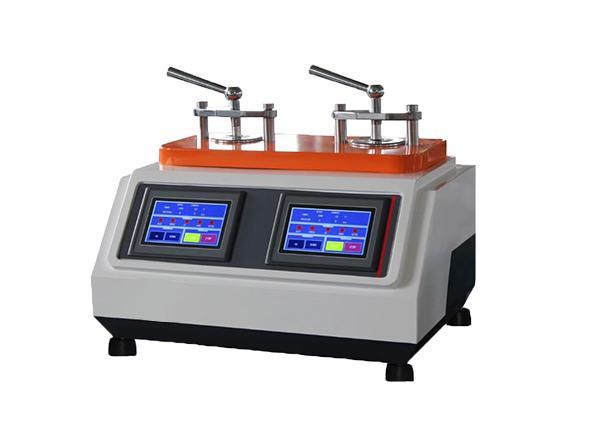

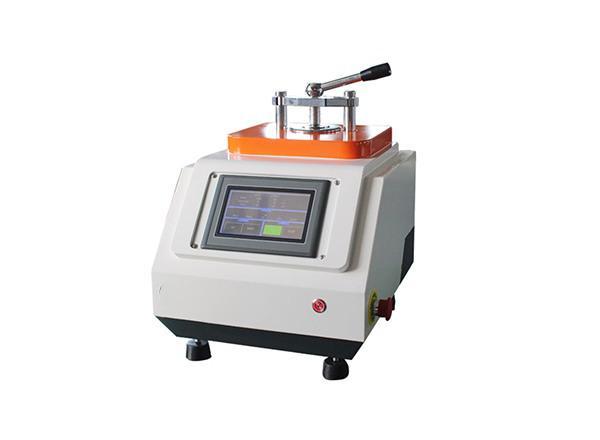

Metallographic equipment refers to a wide range of precision instruments and tools used in the preparation, observation, and analysis of the microstructure of metallic and non-metallic materials. These instruments typically include:

This equipment enables technicians and engineers to study the internal grain structures, detect anomalies, and assess how the material behaves under stress or over time. The accuracy of such investigations is essential for decision-making in various industries, such as aerospace, automotive, manufacturing, energy, and construction.

Why Metallography Matters in Quality Control

Revealing the Invisible: Quality Begins Below the Surface

In modern manufacturing, visible flaws only represent a small portion of potential defects. Microstructural inconsistencies like voids, inclusions, grain boundary separations, or phase imbalances can severely compromise the functionality or durability of a product.

Metallographic equipment helps detect these invisible imperfections before they escalate into full-blown failures. For instance:

• Aerospace parts require tight material conformity to withstand stress at high altitudes.

• Automotive components need consistent microhardness to endure repetitive motion and temperature changes.

• Industrial gears demand uniform grain orientation for even load distribution.

By integrating metallographic analysis into quality control workflows, manufacturers reduce the risk of defective shipments, product recalls, or warranty claims.

Compliance with Industry Standards

Global industries follow rigorous quality assurance standards, such as ASTM, ISO, or DIN protocols, which often require microstructural verification. Metallographic equipment allows operators to meet these benchmarks by:

• Providing repeatable and verifiable inspection data

• Supporting documentation with high-resolution images and reports

• Ensuring traceability throughout the production cycle

As a result, it becomes easier for organizations to pass audits, retain certifications, and boost client confidence.

Metallographic Equipment in Failure Analysis

Investigating the Root Cause of Material Failures

When a component fails unexpectedly—whether in a turbine blade, pipeline, or welded joint—determining the root cause quickly is crucial. Metallographic techniques play a vital role here. The ability to prepare and examine fracture surfaces, deformation zones, or welded seams enables metallurgists to assess:

• Was the failure due to poor heat treatment?

• Did fatigue initiate from a micro-crack?

• Was the alloy composition incorrect?

Such insights can drastically improve design parameters or processing steps in future production runs.

Time-Efficiency and Precision in Failure Diagnosis

Failure analysis demands high accuracy under time pressure. Modern metallographic equipment has evolved to meet these demands:

• Automated polishing and grinding stations minimize human error and variability

• Digital imaging microscopes allow high-speed data capture and real-time collaboration

• Hardness testers with mapping functions identify weak zones across large samples

By combining speed with precision, failure analysis becomes not only reactive but proactive—helping prevent future incidents and optimizing reliability.

Applications Across Industries

Metallographic Equipment in Aerospace, Automotive, and Energy Sectors

Metallographic tools are not confined to academic labs—they are integral to industries where materials perform under extreme conditions. Consider these applications:

• Aerospace: Jet engine components undergo metallographic testing to verify heat treatment depth, detect microcracks, and examine creep deformation.

• Automotive: Gears, axles, and cylinder heads require microstructural inspections to ensure fatigue resistance and long-term wear performance.

• Energy: Power plants rely on metallography to assess turbine blades, boiler tubes, and welding seams for corrosion and thermal fatigue.

The value these tests bring to safety, longevity, and operational efficiency is undeniable.

Key Features to Consider When Choosing Metallographic Equipment

Selecting the right metallographic equipment depends on several factors. Users should consider:

These features not only impact analysis results but also affect operational workflow, cost-efficiency, and training requirements.

Frequently Asked Questions (FAQs)

Q1: Is metallography only useful for metals?

No. While primarily associated with metallic materials, metallography can also be applied to ceramics, composites, and polymers, especially in aerospace and medical industries.

Q2: How often should metallographic inspections be conducted?

Frequency depends on the application. Critical components may need testing at every production batch, while others follow periodic sampling protocols based on quality assurance guidelines.

Q3: What training is required to operate metallographic equipment?

Operators typically undergo specialized training in materials science or quality assurance. Manufacturers also provide certified instruction on proper equipment usage, sample preparation, and analysis.

Conclusion

As industries advance toward smart manufacturing, predictive maintenance, and zero-defect production, metallographic equipment will continue to evolve. AI-driven image recognition, cloud-based reporting, and integration with digital twins are already reshaping how quality control and failure analysis are performed.

Still, one truth remains constant: understanding a material’s internal structure is the key to ensuring its external performance. And at the heart of this understanding lies metallography—a discipline as essential today as ever before.
