Views: 173 Author: Site Editor Publish Time: 2025-05-19 Origin: Site
Metallographic equipment plays an indispensable role in material science, particularly in sectors where precision, strength, and reliability are paramount—such as the aerospace and automotive industries. These industries demand rigorous analysis of metal structures to ensure safety, performance, and compliance with international standards. In this article, we explore how metallographic equipment supports advanced material analysis, improves quality assurance processes, and contributes to technological innovations in these high-stakes fields.
Metallographic equipment refers to a suite of specialized tools designed for the preparation, examination, and analysis of metallic samples at microscopic levels. These systems include sample cutters, mounting presses, grinders, polishers, and optical or electron microscopes. The primary purpose is to reveal the microstructure of metals and alloys to assess their composition, grain boundaries, phase distributions, and possible defects like inclusions or cracks.
The process of metallographic analysis typically involves several standardized steps:
Sectioning the sample to an appropriate size.
Mounting to embed the sample in resin for easier handling.

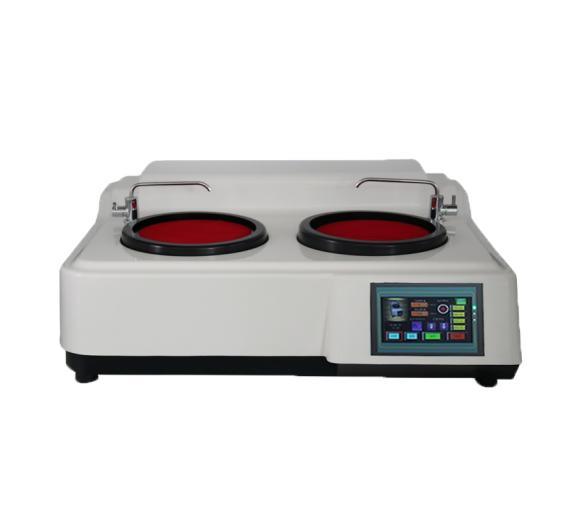

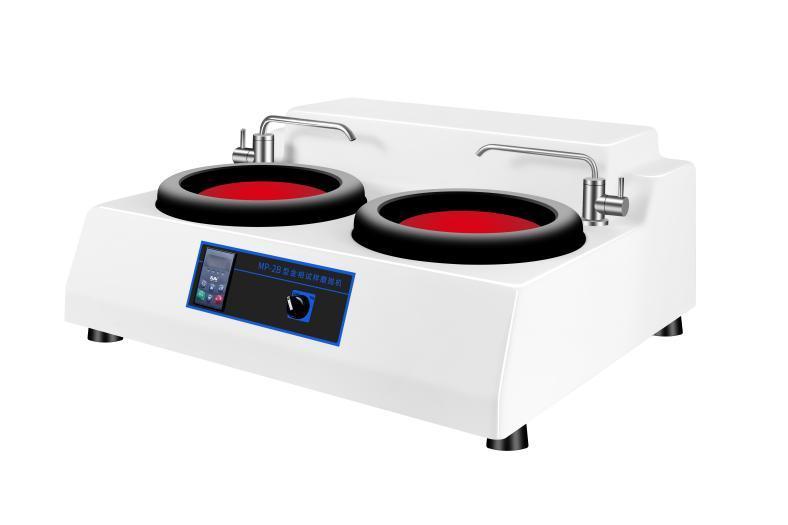

Grinding and polishing to produce a mirror-like surface.
Etching to highlight structural details.
Microscopic analysis for documentation and interpretation.
Without these procedures, any flaws or inconsistencies in metal components may remain undetected until catastrophic failure occurs. Hence, metallographic equipment isn't just scientific apparatus—it is a safeguard for human life and technological progress.
In aerospace engineering, materials are subject to extreme environmental conditions—high temperature fluctuations, pressure changes, mechanical loads, and corrosive atmospheres. A single defect in a turbine blade or airframe component could result in mission failure or even disaster. Metallographic equipment helps engineers uncover internal weaknesses before parts are deployed.
Typical analyses in aerospace using metallographic tools include:
Evaluation of titanium alloys for fatigue resistance.
Detection of creep voids in high-temperature nickel-based superalloys.
Examination of weld zones in fuselage panels for porosity or delamination.
Grain size measurement to ensure compliance with aerospace standards like ASTM E112.
By integrating metallographic equipment into R&D and production workflows, aerospace companies can certify that their materials not only meet but exceed quality and safety benchmarks.
The automotive industry continually innovates in materials science to create lighter, safer, and more efficient vehicles. Whether it's the high-strength steel used in crumple zones or the aluminum alloys employed in engine blocks, the integrity of these materials must be meticulously verified.
Metallographic equipment allows automotive engineers to:
Analyze heat-treated steel components for martensite formation.
Identify microcracks in aluminum castings.
Confirm homogeneity of powder metal parts used in electric vehicle motors.
Study failure modes after crash tests for design improvements.
By visualizing the internal structure of materials, automotive manufacturers can enhance durability, optimize processing techniques, and reduce recalls—all of which contribute to better vehicles and stronger consumer trust.
| Aspect | Aerospace | Automotive |
|---|---|---|
| Material Types | Titanium, nickel superalloys, aluminum-lithium alloys | Steel alloys, aluminum, magnesium, powder metals |
| Primary Focus | Fatigue, creep, corrosion resistance | Wear, impact resistance, thermal stability |
| Analytical Techniques | Grain size, porosity, phase analysis | Inclusion analysis, hardness depth profiling |
| Testing Frequency | Per batch and per component due to stringent standards | Sample-based QC, high-volume throughput |
| Industry Standards Referenced | ASTM E407, ISO 4967, SAE AMS 2649 | ASTM E3, DIN 50100, ISO 6507 |
This table illustrates the distinct yet overlapping needs of the two industries and highlights how versatile and essential metallographic equipment is across different sectors.
One of the most valuable uses of metallographic equipment is in failure analysis. When a component fails—whether in a plane, a car, or a test environment—it is critical to determine why. Was it a design flaw, a manufacturing defect, or unforeseen stress? Metallographic analysis provides clues through microstructural evidence.
Typical failure indicators metallographic tools can reveal:
Intergranular fractures caused by hydrogen embrittlement.
Decarburization layers in improperly heat-treated steel.
Fatigue striations indicating cyclical loading.
Phase transformations resulting from overheating.
Such investigations not only guide corrective actions but also help prevent future failures. This knowledge feeds directly into the design cycle, ensuring that each new product iteration is safer and more reliable.
With increasing demand for faster turnaround and higher accuracy, modern metallographic equipment is rapidly evolving. Today, smart labs are equipped with automated sample preparation systems and AI-driven imaging software. These technologies reduce operator error, improve consistency, and allow for real-time decision-making.
Notable advancements include:

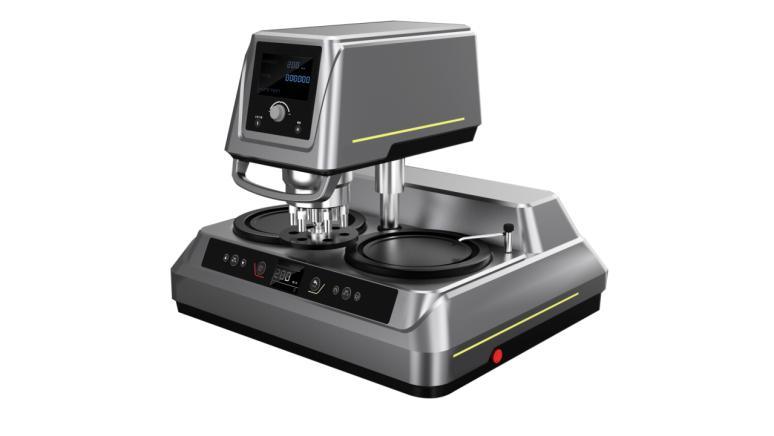

Automated polishing stations with programmable parameters.
High-resolution digital microscopes offering 3D rendering.
Cloud-based data systems for sample traceability and report generation.
AI-enhanced image recognition for faster defect classification.
While these tools are not yet universal, their growing presence signals a major shift in how aerospace and automotive industries conduct material validation and quality control.
Metallographic equipment is used to prepare and analyze metallic samples to study their microstructure, which helps in assessing material quality, processing effects, and potential defects.
It ensures the structural integrity and reliability of critical components by uncovering internal flaws and validating material treatments.
Yes, certain ceramics and composites can also undergo similar preparation and analysis with adjusted procedures.
In aerospace, it's often conducted on every component or batch. In automotive, it's typically sample-based due to higher production volumes.
The role of metallographic equipment in the aerospace and automotive sectors cannot be overstated. These tools provide unparalleled insight into material behavior, enabling engineers to design safer airplanes and smarter vehicles. From initial R&D to post-mortem failure analysis, metallography underpins the reliability and innovation that define these industries.
As technology progresses, the integration of automation and artificial intelligence into metallographic systems promises to further enhance efficiency, consistency, and accuracy. For industries built on the foundation of trust and performance, investing in metallographic equipment is not just a technical necessity—it is a strategic imperative.
