Views: 0 Author: Site Editor Publish Time: 2026-07-14 Origin: Site
Material failure due to improper hardness verification carries severe financial and safety liabilities in manufacturing, aerospace, and metallurgy. Selecting a Hardness Testing Machine extends beyond simply picking a standardized scale. Misaligning machine capabilities with material microstructure, expected hardness range, specimen thickness, or production throughput leads to false readings, operator bottlenecks, and compliance failures. This guide provides a systematic, engineering-focused framework for evaluating, shortlisting, and procuring the correct hardness testing equipment based on technical constraints, operational environments, and industry standards. We focus on practical application, ensuring your quality control processes remain robust, repeatable, and aligned with strict metallurgical requirements.
Material grain size and structural consistency dictate the required indentation size. Non-homogeneous materials, such as cast iron, large forgings, or certain powder metallurgy components, require macro-indentations to average out phase variations across the surface. If you use a small indenter on a coarse-grained material, the tip might hit a localized hard carbide or a soft graphite flake. This yields a scattered result that fails to represent the overall bulk material strength. You need a large enough indentation to encompass multiple grains and phases, providing a true average.
Conversely, fine-grained materials, thin metal sheets, or specialized surface coatings require micro-indentations. When evaluating a nitrided surface or a thin electroplated layer, a macro-indenter will punch straight through the coating and measure the softer substrate beneath it. Micro-indentations ensure the test only measures the intended layer without substrate interference, providing accurate data for case depth profiling and surface treatment verification.
The relationship between expected material toughness and the machine's required test load determines testing accuracy. Selecting too light a load results in superficial readings affected by minor surface oxidation or machining work-hardening. Applying too heavy a load causes the anvil effect, where the underlying support influences the reading, or leads to material cracking and catastrophic specimen failure, particularly in brittle ceramics or thin glass.
Standard load ranges map directly to common material classes. Understanding this mapping prevents equipment mismatch and ensures valid data collection across different production lines.
| Test Load Range | Typical Material Applications | Common Testing Scales |
|---|---|---|
| 10 gf to 1 kgf (Micro) | Thin foils, surface coatings, case depth profiling, ceramics, micro-welds. | Micro-Vickers (HV), Knoop (HK) |
| 1 kgf to 50 kgf (Macro/Low Load) | Soft plastics, thin sheet metals, copper alloys, aluminum extrusions. | Macro-Vickers, Superficial Rockwell |
| 60 kgf to 150 kgf (Standard) | Structural steels, hardened tool steels, titanium alloys, brass. | Rockwell (HRC, HRB) |
| 500 kgf to 3000 kgf (Heavy) | Cast irons, large steel forgings, heavy structural components, rough surfaces. | Brinell (HBW) |
Physical limitations of a testing machine, specifically vertical capacity (daylight) and throat depth, govern whether a complex part geometry can be tested without destructive sectioning. If you manufacture large engine blocks or deep-drawn cylinders, the machine must physically accommodate the part while allowing the indenter to reach the target surface perpendicularly.
The specimen thickness must adhere to the 10x Indentation Depth Rule. This rule mandates that the material thickness must be at least ten times the depth of the indentation. If the material is too thin, the indenter deforms the material against the supporting anvil, yielding a falsely high reading and often leaving a visible bulge on the underside of the specimen.
Surface preparation requirements vary significantly by method. Macro-methods tolerate rougher finishes, making them suitable for raw castings straight off the foundry floor. Micro-methods demand highly polished, metallographic sample preparation. Any scratches, machining marks, or surface irregularities will obscure the microscopic indentation corners, making accurate optical measurement impossible.
High-volume inline production testing prioritizes speed, automation, and ruggedness. Equipment in these environments must withstand airborne dust, ambient temperature fluctuations, and continuous three-shift operation while delivering rapid pass/fail results. R&D laboratory testing prioritizes versatility, extreme precision, and advanced data analysis. Laboratory environments allow for slower, highly controlled test cycles where operators perform detailed microstructural evaluations and complex pattern testing.

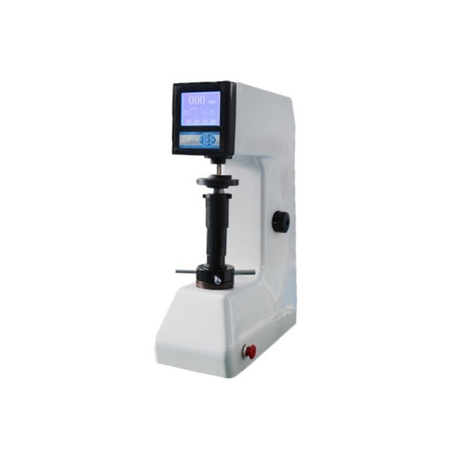

The Rockwell method provides rapid, direct-reading results suitable for general metals, alloys, and plastics. It measures the depth of penetration rather than the diameter of the indentation, eliminating the need for optical evaluation. This makes the process exceptionally fast and less dependent on operator interpretation. You apply a minor load to establish a zero reference position, followed by a major load to create the full indentation, and then return to the minor load to read the depth difference.
However, the Rockwell method has strict limitations regarding thin materials, specimen curvature, and case depth profiling. Testing on cylindrical or spherical surfaces requires specific correction factors based on the radius of curvature. Evaluating very thin layers often results in substrate interference, requiring a shift to superficial Rockwell scales or microhardness methods.
A Brinell hardness tester is engineered for heavy-load applications up to 3000 kgf and is ideal for rough, non-homogeneous materials. The larger tungsten carbide ball indenter averages out surface imperfections, making it the standard for cast irons, large forgings, and heavy structural steels. The massive indentation covers enough surface area to provide a reliable bulk hardness value despite local microstructural variations.
The primary trade-offs include slower test cycles and the absolute necessity for accurate optical measurement of the indentation diameter. After the machine applies the load, the operator or an automated optical system must measure the diameter of the resulting crater. Manual measurement using a basic microscope introduces operator variability, making automated optical reading systems highly recommended for consistent quality control.
Microhardness machines are necessary for evaluating thin layers, coatings, phase constituents, and precise case-hardening depths (CHD). These methods utilize highly refined diamond indenters (pyramid shape for Vickers, elongated pyramid for Knoop) and apply very low forces. Accurate measurement necessitates high-resolution optics, motorized XY stages for precise pattern generation, and strict environmental controls.
Because the indentations are microscopic, any external vibration during the load application will distort the indentation shape, invalidating the test. These machines require dedicated anti-vibration tables and isolation from heavy shop floor machinery.
Stationary benchtop models offer maximum rigidity, compliance, and accuracy. They are the standard for laboratory and quality control environments where parts can be sectioned and brought to the machine. The heavy cast frames prevent deflection during load application, ensuring the force is applied perfectly perpendicular to the specimen surface.
Portable testers, including Leeb rebound, Ultrasonic Contact Impedance (UCI), and portable Rockwell units, are necessary for large-scale structures, pipelines, and parts that cannot be transported. Portable units involve technical compromises, including lower repeatability, high dependence on operator positioning, and strict surface preparation limitations. The operator must hold the device perfectly steady and perpendicular to the surface; any angular deviation will skew the results.
Universal machines are capable of performing multiple scales, including Rockwell, Brinell, and Vickers, within a single chassis. These systems offer significant footprint and versatility advantages for mixed-use testing laboratories. They allow operators to switch between methods without moving the specimen to a different workstation, streamlining the workflow for comprehensive material analysis.
While the initial capital expenditure is higher than a single-scale machine, the ability to consolidate testing stations reduces long-term maintenance overhead and simplifies operator training. Modern universal machines feature motorized turrets that automatically rotate the correct indenter and objective lens into position based on the selected test method.
Traditional deadweight force application systems rely on physical weights and mechanical levers. They are prone to mechanical wear, friction, and force overshoot during application. As the internal pivots and bearings wear down over years of use, the actual force applied to the specimen drifts, requiring frequent mechanical adjustment and calibration.
Modern closed-loop load cell technology utilizes continuous force feedback to adjust the load dynamically. An electronic load cell measures the exact force being applied at the indenter tip and communicates with a motorized actuator to maintain the precise target load. This results in higher precision, dynamic speed control, and the ability to cover broader load ranges within a single machine, significantly reducing calibration drift over time.
The transition from manual eyepiece measurement to high-megapixel digital cameras with auto-focus and automated image analysis software represents a major leap in testing reliability. Manual measurement requires the operator to align crosshairs with the edges of the indentation, a process highly susceptible to eye fatigue and subjective interpretation.
Automated edge detection directly correlates to reduced operator influence and improved compliance with strict tolerance bands. By removing the subjective human element from measuring indentation diagonals or diameters, laboratories achieve far superior repeatability. Advanced software algorithms can accurately identify indentation edges even on less-than-ideal surface finishes, compensating for minor scratches or uneven lighting.
Translating internal part tolerances into machine accuracy requirements is a fundamental step in procurement. Machine rigidity, load application speed, and electronic resolution directly impact overall Gauge Repeatability and Reproducibility (GR&R) metrics. A machine with a flexible frame or inconsistent load application will fail GR&R studies, rendering it useless for tight-tolerance aerospace or automotive components.
When evaluating equipment, demand documented GR&R studies from the manufacturer using materials similar to your production parts. A machine might perform perfectly on a standardized test block but struggle with the specific geometry or surface finish of your actual components.
Modern testing environments require built-in compliance with current ASTM (e.g., ASTM E18, E10, E384) and ISO standards (e.g., ISO 6506, 6507, 6508). Equipment must support software capabilities for LIMS or ERP integration, allowing seamless data transfer from the shop floor to quality management systems.
Automated report generation and unalterable audit trails are mandatory for facilities adhering to aerospace, medical device, or automotive quality standards like Nadcap. The software must log the operator ID, timestamp, test parameters, and raw measurement data, preventing unauthorized modification of test results and ensuring full traceability during external audits.
Inconsistent results frequently stem from improper sample seating, incorrect indenter angle, or subjective optical measurements. An operator failing to secure a specimen flat against the anvil will introduce deflection, resulting in artificially low hardness readings. If the specimen shifts even a fraction of a millimeter during load application, the test is invalid.
Standardizing on automated reading software and implementing rigorous, documented training protocols mitigates these risks. Operators must be trained not only on how to push the start button but on the fundamental mechanics of the test, including proper anvil selection, surface preparation techniques, and recognizing invalid indentations.
Micro-vibrations easily skew low-force Vickers or Knoop indentations, while thermal expansion affects machine mechanics and load cell accuracy. A forklift driving past a laboratory can introduce enough floor vibration to distort a 10-gram microhardness indentation, leading to rejected batches and wasted rework time.
Facilities must mandate active anti-vibration tables for microhardness testers and isolate equipment from HVAC drafts. Verifying that shop-floor machines are specifically rated and ruggedized for harsh environments prevents premature component failure and measurement drift. Regular environmental audits ensure the testing location remains stable and conducive to high-precision measurement.
To finalize your selection process, follow these actionable steps:
A: Deadweight machines use physical weights and levers to apply force, which can cause friction and overshoot. Closed-loop machines use electronic load cells and continuous feedback to apply force precisely, offering better accuracy and repeatability.
A: Yes, universal hardness testing machines are designed with interchangeable indenters and broad load ranges to perform multiple testing scales within a single chassis, saving laboratory space.
A: The test load must match the material's toughness and thickness. Use heavy loads for thick, hard metals and light loads for thin sheets or delicate coatings to avoid penetrating the substrate or cracking the sample.
A: The Brinell method uses a large ball indenter and heavy loads, creating a macro-indentation that averages out the microstructural inconsistencies and rough surface finishes typical of cast iron and forgings.
A: The 10x rule states that the material being tested must be at least ten times thicker than the depth of the indentation to prevent the underlying anvil from influencing the hardness reading.
A: Choose a portable tester when evaluating large-scale structures, pipelines, or heavy components that cannot be cut into smaller samples or physically transported to a laboratory benchtop machine.
A: Yes. Rough surfaces can scatter light and obscure indentation edges in optical methods like Vickers and Brinell. Microhardness testing requires a highly polished, metallographic surface finish for accurate measurement.
