In the world of high-precision manufacturing, ensuring the geometric accuracy of components is paramount. Among various geometric parameters, roundness—the degree to which a shape conforms to a perfect circle—plays a critical role in the functionality and reliability of many parts. Whether it’s automotive shafts, aerospace components, bearings, or precision machined parts, controlling roundness directly affects product performance, wear resistance, and lifespan.

To accurately measure and control roundness, manufacturers rely on specialized instruments known as roundness testers. These devices provide precise, reliable measurements of circularity deviations, helping companies maintain strict quality standards and reduce costly rework or failures.

What Is a Roundness Tester?

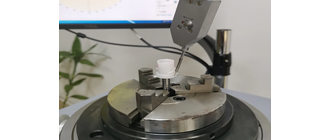

A roundness tester is a precision instrument designed to measure the roundness or circularity of mechanical components. It identifies how closely the profile of a rotating part conforms to a perfect circle by detecting small radial deviations. The results assist engineers in assessing manufacturing accuracy and ensuring components meet design specifications.

Core Components of a Roundness Tester

• Rotary Table or Spindle
  The rotary table is a highly accurate platform where the test piece is mounted. It rotates the part slowly and smoothly during measurement, maintaining minimal runout or wobble to ensure data accuracy.

• Measuring Probe (Stylus or Sensor)
  The probe is a sensitive sensor that detects radial variations on the component’s surface. It may be a mechanical stylus, an optical sensor, or an air gauge, depending on the tester type.

• Data Acquisition and Analysis System
  This includes the electronics and software that collect probe signals, process measurements, and generate detailed reports. Advanced software calculates roundness error, concentricity, eccentricity, and other form parameters based on international standards.

Common Types of Roundness Testers

Roundness testers come in various designs, mainly differentiated by their bearing system and measurement method:

1. Mechanical Bearing Roundness Testers

These testers use precision mechanical bearings for the rotary spindle. They provide reliable rotation accuracy but may require regular maintenance and lubrication. Mechanical types are often favored for their cost-effectiveness and durability.

2. Air Bearing Roundness Testers

Air bearing testers use a thin film of pressurized air to levitate the rotating spindle, minimizing friction and wear. This results in ultra-high precision and repeatability, making them ideal for laboratory-grade measurements where the smallest deviations matter.

3. Stationary Probe vs. Rotating Probe

• Stationary Probe with Rotating Workpiece: The most common setup where the workpiece rotates on the spindle while the probe remains fixed, detecting radius changes.

• Rotating Probe with Stationary Workpiece: Used for large, heavy, or delicate parts that cannot be rotated. The probe moves around the fixed workpiece.

How Does a Roundness Tester Work?

The primary objective of a roundness tester is to precisely measure how much a mechanical component deviates from a perfect circle. This geometric deviation, often measured in microns, directly affects the performance and reliability of rotating parts such as shafts, bearings, and precision machined components. Understanding the working principle of a roundness tester is essential for manufacturers and quality engineers aiming to ensure product accuracy and compliance with strict industry standards.

Measurement Process

1. Mounting the Workpiece

The component to be tested is carefully mounted on the roundness tester’s rotary table or spindle. Proper mounting is critical — any misalignment or eccentricity can introduce measurement errors. Precision chucks, fixtures, or collets are used to hold the part securely and concentrically.

2. Rotation and Data Capture

Once the workpiece is securely mounted, the rotary table slowly turns the component, typically at a few revolutions per minute. This slow, controlled rotation allows the measuring probe, which remains stationary, to continuously monitor the radial distance from the center axis to the surface of the part.

3. Radial Deviation Detection

As the part rotates, the probe detects small changes in radius caused by surface imperfections, waviness, or manufacturing defects. These deviations are recorded as variations in distance, reflecting how the surface deviates from an ideal, perfectly circular profile.

4. Reference Circle Establishment

The collected radial measurements are then processed by the instrument’s software to establish a reference circle. This reference is often determined by mathematical fitting methods such as the Least Squares Circle (LSC) or the Minimum Zone Circle (MZC). The reference circle represents the best theoretical fit against which all deviations are compared.

5. Error Calculation

The difference between the actual surface measurements and the reference circle is calculated to determine the roundness error. This error quantifies the maximum deviation and is used to assess if the part meets specified tolerances. Other related parameters, such as concentricity, eccentricity, and runout, may also be computed depending on the analysis requirements.

Measurement Principles: Rotating Workpiece vs. Rotating Probe

There are two main configurations for roundness testing, each suited to different types of components and testing scenarios:

• Rotating Workpiece with Stationary Probe:
  This is the most common setup. The part is mounted on the rotary spindle and rotated, while a fixed probe measures radial deviations. This approach simplifies the mechanics, reduces potential error sources, and is suitable for a wide range of part sizes and shapes.

• Stationary Workpiece with Rotating Probe:
  Used primarily for large, heavy, or delicate components that cannot be easily rotated. Instead of spinning the workpiece, the measuring probe moves around the stationary part, taking radial measurements. This requires precise control of the probe movement and sophisticated sensors but enables testing of otherwise hard-to-handle items.

Detecting Minute Deviations and the Role of Reference Circles

Roundness testers measure deviations often in the range of microns (millionths of a meter). To interpret these tiny differences, the concept of a reference circle is essential.

There are different methods to define this reference:

• Least Squares Circle (LSC): Minimizes the sum of squared deviations. It provides a balanced average reference.

• Minimum Zone Circle (MZC): The narrowest band that encloses all data points. It is often considered the most precise measure of roundness error.

• Maximum Inscribed Circle (MIC) and Minimum Circumscribed Circle (MCC): Enclose the profile from inside and outside respectively.

By comparing the actual surface profile to these reference circles, testers can calculate parameters such as roundness error, which indicates the degree of deviation.

Key Measurement Parameters of Roundness Testers

Roundness testers not only assess circularity but often measure related geometric characteristics:

1. Roundness (Circularity)

The variation in radius from a perfect circle, typically expressed in microns. It is the core parameter in evaluating part quality.

2. Concentricity

Measures how well the center of the part aligns with a reference axis or another feature. Poor concentricity can cause imbalance or wear.

3. Eccentricity

The offset distance between the center of the actual profile and the geometric center. Excessive eccentricity can affect rotational dynamics.

4. Runout

Describes the total variation of the surface as the part rotates, including wobble and other defects.

5. Cylindricity

For 3D parts like shafts, cylindricity testing evaluates the roundness along the length of the component, ensuring uniform circularity.

Applications of Roundness Testers

Roundness testing is critical in industries where circular precision impacts performance and safety:

• Automotive: Ensuring crankshafts, camshafts, and bearing surfaces meet tolerance to prevent vibration and premature failure.

• Aerospace: Precision components like turbine shafts and landing gear parts require exact roundness for safe operation.

• Bearing Manufacturing: Bearings demand extremely tight roundness and cylindricity tolerances to maintain smooth rotation.

• Precision Machining: Quality control for high-tolerance mechanical parts, medical devices, and instrumentation.

Conclusion

In today’s precision-driven manufacturing landscape, a roundness tester is an essential tool for accurately measuring and controlling circularity errors. Combining advanced sensors, precise rotary mechanisms, and powerful software, these devices deliver critical data that ensures product quality and reliability.

By understanding how roundness testers operate—from their core components to measurement techniques—engineers and quality professionals can optimize production processes and meet stringent industry standards. Investing in a reliable, high-performance roundness tester helps manufacturers minimize material waste, avoid costly defects, and stay competitive in demanding sectors such as automotive, aerospace, and precision machining.
