High-speed rotating components form the backbone of many modern machines and vehicles, spanning industries such as automotive, aerospace, energy, and industrial manufacturing. These components—including crankshafts, turbine rotors, camshafts, and precision tools—must meet exacting standards of precision and durability to operate safely and efficiently at high rotational speeds.

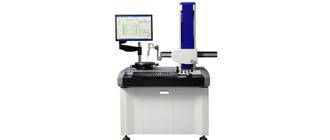

One of the most critical quality parameters for these parts is roundness. Even the slightest deviation from perfect circularity can cause imbalances, excessive vibration, premature wear, and ultimately catastrophic failure. To ensure the integrity and reliability of these components, manufacturers employ specialized equipment known as roundness testers.

Why Roundness Matters for High-Speed Rotating Components

High-speed rotating parts operate under tremendous centrifugal forces. Their performance and safety are intrinsically linked to their geometric accuracy, especially roundness.

Effects of Roundness Deviations

• Vibration and Noise: Out-of-roundness creates uneven mass distribution. This imbalance causes vibrations that not only reduce comfort and increase noise but also accelerate wear on bearings and connected systems.

• Mechanical Wear: Irregular surfaces increase friction and uneven loading, which degrade component surfaces faster and reduce service life.

• Fatigue and Failure: High rotational speeds amplify stresses caused by geometric imperfections, raising the risk of cracks, fatigue, and catastrophic failure.

• System Efficiency: Imperfect roundness reduces energy efficiency by causing friction losses and reducing the smoothness of motion.

Safety Considerations

In critical applications such as aerospace engines or automotive transmissions, even minimal defects can jeopardize safety. Therefore, stringent quality control measures centered on roundness assessment are mandatory to ensure compliance with industry standards and regulations.

Challenges in Measuring Roundness of High-Speed Components

Measuring roundness for high-speed rotating components is a critical but complex task. These components demand exceptional precision, and several challenges must be addressed to ensure accurate and reliable measurements:

Tight Tolerances

High-speed parts such as turbine shafts and crankshafts require roundness within micrometer or even sub-micrometer tolerances. Achieving this level of accuracy requires highly sensitive instruments and controlled measurement conditions to minimize errors.

Complex Geometries

Many components feature intricate shapes beyond simple cylindrical profiles—such as turbine blades, cam lobes, and specially contoured surfaces. Measuring these requires versatile roundness testers capable of adapting to diverse geometries and multi-profile analysis.

Material Properties

Different materials impact measurement effectiveness. Hardened steels, titanium alloys, and composite materials exhibit varying surface hardness and finishes, which can affect probe contact accuracy and sensor responsiveness, especially for contact-based measurement methods.

Environmental Influences

Measurement environments are rarely ideal. Temperature fluctuations can cause thermal expansion, nearby machinery vibrations introduce noise, and dust or contaminants interfere with sensor operation. Advanced filtering and compensation algorithms are essential to mitigate these factors and ensure measurement integrity.

The Role of Roundness Testers in Manufacturing

Roundness testers play a pivotal role throughout the manufacturing lifecycle, ensuring components meet stringent specifications and function safely and efficiently:

Ensuring Quality Control

By conducting roundness measurements at various production stages—such as post-machining, grinding, and final inspection—manufacturers can detect deviations early. This proactive approach prevents defective parts from advancing down the production line or reaching customers, reducing costly recalls or failures.

Process Optimization

Roundness data offers valuable feedback for machining and finishing operations. Adjustments based on precise measurements allow for tighter control of turning, grinding, and honing processes, improving accuracy and reducing cycle times. This leads to enhanced productivity and cost savings.

Regulatory Compliance

Industries like automotive and aerospace are subject to rigorous geometric tolerance standards. Roundness testers provide traceable, documented evidence of compliance, supporting certifications and quality audits necessary to meet regulatory and customer requirements.

Technologies and Features Suitable for High-Speed Components

To overcome measurement challenges, modern roundness testers employ a suite of advanced technologies tailored for high-speed rotating parts:

Precision Rotary Tables

Rotary tables are engineered to provide ultra-smooth, stable rotation with minimal runout or vibration. High-end models often use air bearings or magnetic suspension to virtually eliminate friction and wear, ensuring repeatable and accurate measurements.

Contact and Non-Contact Probes

• Contact Probes: Utilize stylus or diamond-tipped sensors that physically trace the surface contour, capturing minute radial deviations with high resolution. Ideal for hard materials with smooth finishes.

• Non-Contact Probes: Use laser or optical sensors to measure without touching the surface, perfect for delicate, soft, or coated materials where contact could damage the part or skew results.

Sophisticated Software Algorithms

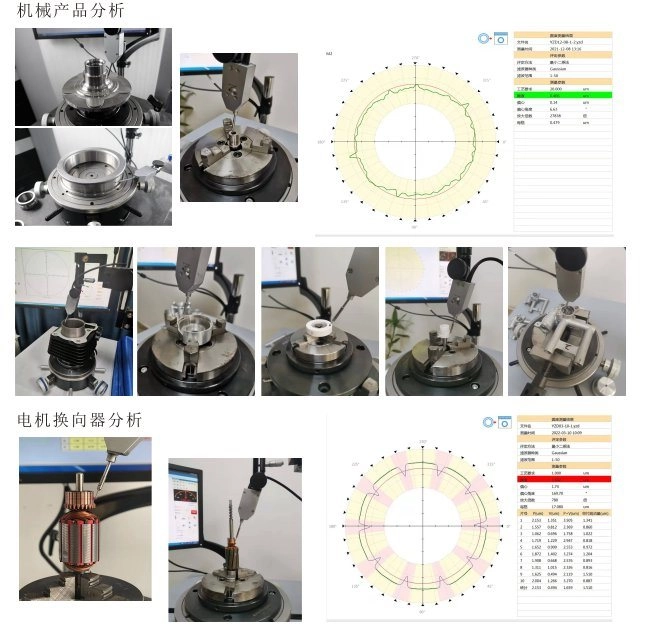

Software processes raw measurement data to compute roundness, cylindricity, runout, and other form errors. It also generates intuitive visualizations such as polar plots and deviation graphs, simplifying analysis. Many systems offer integration with production monitoring platforms for real-time quality tracking.

Automation and Data Integration

Advanced roundness testers incorporate automated loading/unloading systems to increase throughput and reduce operator error. Connectivity with Manufacturing Execution Systems (MES) and Quality Management Systems (QMS) enables full traceability, data storage, and process control—vital for Industry 4.0 smart manufacturing environments.

Typical Applications in High-Speed Rotating Components

Automotive Industry

• Crankshafts and Camshafts: Critical for engine timing and power transmission; require exceptional roundness to prevent vibration and wear.

• Wheel Hubs and Brake Discs: Ensuring roundness helps maintain vehicle stability and braking performance.

• Transmission Shafts: Smooth rotation reduces friction losses and prolongs gearbox life.

Aerospace Industry

• Turbine Shafts and Rotors: High rotational speeds and extreme temperatures demand flawless roundness to avoid catastrophic failure.

• Jet Engine Components: Even minute roundness errors affect fuel efficiency and engine lifespan.

• Actuators and Control Surfaces: Precision roundness contributes to reliable control system responsiveness.

Industrial and Energy Sectors

• Electric Motor Rotors: Ensuring uniform rotation improves motor efficiency and reduces noise.

• Turbine Generators: Balanced rotation extends maintenance intervals and enhances output.

• Precision Tools and Spindles: High roundness accuracy ensures cutting and machining precision.

Benefits of Using Roundness Testers in Production

Incorporating roundness testers offers substantial advantages:

• High Precision and Repeatability: Guarantees consistent quality across production batches.

• Reduced Waste and Scrap: Early defect detection saves material costs and reduces rework.

• Improved Safety: Reliable parts prevent accidents caused by mechanical failure.

• Enhanced Performance: Smooth, balanced components enable efficient operation with less vibration.

• Regulatory Compliance: Meets stringent industry quality and safety standards.

• Increased Customer Satisfaction: Delivering high-quality components strengthens brand reputation and customer trust.

Conclusion

The production of high-speed rotating components demands the highest levels of precision and quality control. Roundness testers are indispensable tools in achieving these goals, enabling manufacturers to detect even the smallest deviations that can impact performance and safety. With advanced technologies—from precision rotary tables to sophisticated software—these instruments provide critical insights to optimize manufacturing processes, reduce waste, and ensure compliance.

Investing in a high-quality roundness tester is not just a matter of meeting specifications; it is a strategic decision that enhances product reliability, customer satisfaction, and competitive advantage. For manufacturers seeking reliable and precise roundness testing solutions, partnering with experienced providers like Guangdong Forth Science Technology Co., Ltd. ensures access to cutting-edge equipment tailored to the exacting demands of high-speed rotating component production.

Explore their range of precision roundness testers and discover how their technology can support your quality assurance goals. Contact Guangdong Forth Science Technology Co., Ltd. today to learn more and elevate your manufacturing quality to new heights.
