In the era of Industry 4.0, manufacturing tolerances are tighter than ever. This unrelenting push for precision has transformed the selection of metrology equipment from a simple purchase into a critical business decision. Choosing the right Three Coordinate Measurement Tool is no longer about chasing the highest numbers on a data sheet; it demands an outcome-based evaluation focused on real-world production value. Many businesses invest in entry-level tools only to find they lack the robustness and capability required for a demanding production environment. This guide cuts through the noise, identifying the five essential features that distinguish a high-utility, professional-grade CMM from a machine that will ultimately fail to deliver. You will learn how to assess sensor technology, software intelligence, structural integrity, dynamic performance, and total cost of ownership to make a truly informed investment.
Sensor Versatility: The ability to switch between tactile and non-contact measurement is the primary driver of long-term ROI.
Software is the Bottleneck: Hardware precision is wasted without a CAD-integrated, user-friendly software interface.
Environment Matters: Thermal compensation and structural stability determine if a tool works on the shop floor or only in a climate-controlled lab.
TCO over Purchase Price: Maintenance, calibration, and training costs often outweigh the initial capital expenditure.
A modern professional CMM is more than a single-function device; it's a versatile metrology platform. The ability to deploy different sensor technologies on the same machine frame is a primary driver of efficiency and return on investment. It allows a single system to handle a wide variety of parts and measurement tasks, from simple geometric features to complex freeform surfaces.
The core of CMM versatility lies in its ability to integrate both tactile and non-contact sensors. Tactile probing, using touch-trigger or scanning probes, remains the gold standard for high-accuracy measurement of individual points and prismatic features like holes, planes, and cylinders. It provides exceptional sub-micron accuracy. However, for parts with complex geometries, delicate surfaces, or a need for rapid data capture, optical sensors are superior. Laser line scanners can capture millions of points in seconds, creating a dense point cloud ideal for surface analysis and reverse engineering. A professional system must offer a seamless way to use both, often within the same inspection routine.
Manually swapping probes is a major source of downtime and potential operator error. An automated tool changer, or probe rack, is a non-negotiable feature for any serious production environment. It allows the CMM to automatically switch between different tactile styli (e.g., a short, rigid stylus for deep bores and a star stylus for undercuts) and even swap out an entire tactile probe head for a laser scanner. This automation has a direct, measurable impact on cycle times, enabling "lights-out" inspection and freeing up skilled operators for more value-added tasks.
Traditional 3-axis CMMs move the probe along the X, Y, and Z axes. A 5-axis system adds two rotary axes at the probe head itself, allowing it to articulate and orient the stylus tip to almost any angle. This capability is transformative. It dramatically reduces the need for complex, custom fixturing and minimizes part re-positioning. For industries like aerospace and automotive, where components have intricate features at compound angles, a 5-axis system can slash inspection time by over 50%. The probe head moves around the part, rather than the entire machine structure, resulting in faster measurements and higher throughput.
Your measurement needs will evolve. The parts you manufacture in five years may require different inspection techniques than the parts you make today. A key feature to look for is a modular platform that allows for future sensor upgrades. Can the controller and software handle a new type of laser scanner that doesn't exist yet? Is the mechanical interface standardized to accept next-generation probes? Choosing a CMM from a manufacturer with a clear technology roadmap ensures your initial investment remains valuable for years to come, adapting to new challenges without requiring a complete system replacement.
The most precise CMM hardware in the world is useless without powerful, intuitive software to control it and interpret its data. The software is the brain of the system, acting as the interface between the design intent (the CAD model) and the physical part. In modern quality control, software is often the primary bottleneck or the greatest enabler of productivity.
Efficient CMM programming begins with the 3D CAD model. A professional software package must support the native import of all major CAD formats, including STEP, IGES, Parasolid, CATIA, Siemens NX, and SolidWorks. This direct compatibility eliminates data translation errors and enables Product and Manufacturing Information (PMI) to be read directly from the model. This facilitates "click-and-measure" programming, where an operator can simply click on a feature in the CAD model, and the software automatically generates the appropriate measurement routine. This dramatically speeds up programming and reduces the potential for human error.
Modern manufacturing relies on Geometric Dimensioning and Tolerancing (GD&T) to define how parts function. It's not enough to simply measure a hole's diameter; you must verify its position, perpendicularity, and cylindricity relative to other features. The CMM software must have a robust and certified GD&T evaluation engine that fully supports the latest industry standards, such as ASME Y14.5 and ISO 1101. The software should be able to correctly interpret complex callouts, apply material condition modifiers (MMC/LMC), and calculate bonus tolerances, ensuring your inspection results are compliant and meaningful.
Collecting measurement data is only the first step. The ultimate goal is to generate actionable quality insights. The software should make this easy with customizable, automated reporting tools. This includes graphical reports showing deviations from the CAD model, traditional tabulated reports, and "go/no-go" summaries for quick shop-floor decisions. Furthermore, seamless integration with Statistical Process Control (SPC) software is crucial. By feeding measurement data directly into SPC charts, you can monitor process trends, identify sources of variation, and take corrective action before bad parts are produced, moving from simple part inspection to true process control.
A common challenge is balancing deep analytical power with ease of use. A quality engineer needs access to advanced functions and detailed settings, but a shop-floor operator needs a simple, graphical interface to load a part, run a pre-written program, and understand the results. The best software platforms address this with dual interfaces: a powerful "programming" mode for engineers and a simplified "runtime" or "operator" mode. This ensures the Coordinate Measuring Machine can be deployed effectively across different skill levels within the organization, maximizing its utilization.
A CMM's accuracy is fundamentally tied to its physical structure and its ability to counteract environmental instability. A machine that is perfectly accurate in a temperature-controlled metrology lab may produce unreliable data on a production floor with fluctuating temperatures and background vibrations. Professional tools are engineered from the ground up to deliver consistent results in the real world.
The choice of materials for the CMM's frame and guideways is critical. Each material offers a different balance of thermal stability, stiffness, and vibration damping. Granite remains a popular choice for the machine base due to its excellent vibration damping properties and low coefficient of thermal expansion (CTE). However, advanced materials are increasingly used for the moving bridge and quill.
| Material | Key Advantage | Consideration |
|---|---|---|
| Granite | Excellent thermal stability and vibration damping. | Very heavy, slow to acclimate to temperature changes. |
| Ceramic | High stiffness-to-weight ratio, resistant to corrosion. | Lower thermal mass, reacts more quickly to temperature shifts. |
| Aluminum Alloy | Lightweight, allowing for high acceleration. | High CTE, requires active thermal compensation. |
A professional CMM often uses a combination of these materials to optimize performance, for instance, a granite base with a ceramic or aluminum alloy bridge.
Even with stable materials, temperature changes will cause the machine's structure and the part being measured to expand or contract, introducing significant measurement error. Active thermal compensation is the solution. This system uses multiple temperature sensors placed on the machine's scales and frame, as well as on the part itself. The CMM's controller reads this data in real-time and uses a mathematical model to compensate for thermal-induced errors, ensuring accurate measurements even as the ambient temperature changes throughout the day.
CMMs are sensitive to low-frequency vibrations from sources like stamping presses, forklifts, or even nearby HVAC units. These vibrations can degrade measurement repeatability. There are two primary solutions:
Passive Isolation: Uses elastomeric pads or air springs to absorb a portion of the ambient vibration. This is suitable for environments with moderate vibration levels.
Active Isolation: Employs sensors to detect incoming vibrations and actuators to generate an out-of-phase counter-force, effectively canceling them out. This is essential for high-precision CMMs installed near heavy machinery.
A true shop-floor CMM is designed for more than just thermal and vibration challenges. It must be hardened against the realities of a production environment. This includes features like covered guideways to protect against dust and oil mist, a robust control system that is resilient to electrical noise, and an overall design that simplifies cleaning and maintenance. These features ensure the machine not only survives but thrives outside the pristine conditions of a quality lab.
In a production setting, measurement speed is nearly as important as accuracy. The rate at which a CMM can inspect parts—its throughput—directly impacts production flow and efficiency. However, throughput is not just about maximum travel speed; it's a complex interplay of acceleration, software optimization, and understanding the true nature of machine accuracy.
A common mistake is to focus on a CMM's maximum vector speed. This "vanity metric" is rarely achieved during an actual measurement cycle, which consists of many short moves between features. A far more important specification is acceleration. High acceleration allows the CMM to get up to speed and stop on a point quickly, dramatically reducing the time spent moving between measurement points. This is what truly dictates cycle time in high-volume applications. Look for advanced drive systems, such as linear motors, which can provide superior acceleration and smoother motion compared to older belt-driven systems.
Software plays a critical role in maximizing dynamic performance. Intelligent path optimization algorithms automatically calculate the shortest, most efficient probe path to measure all required features. This minimizes "air time"—the time the probe spends moving but not measuring. Modern software also includes sophisticated collision avoidance. It uses the CAD models of the part, the CMM, and the fixturing to simulate the entire measurement routine, ensuring the probe can reach every feature without any costly crashes. This allows for faster, more confident programming.
It's crucial to understand the difference between these two fundamental metrology concepts:
Accuracy: How close a measurement is to the true value. An accurate machine is consistently right.
Repeatability: How close multiple measurements of the same feature are to each other. A repeatable machine is consistently the same, even if it's consistently wrong.
For process control, repeatability is often the most critical parameter. A highly repeatable machine allows you to reliably detect process drift, even if there is a small, known offset (error map) from the true value. Professional CMMs specify both, and you must evaluate them based on your application's needs.
Don't be misled by accuracy specifications quoted for a single axis. The most important metric is volumetric accuracy, often expressed as MPE (Maximum Permissible Error) according to standards like ISO 10360-2. This specification defines the maximum measurement error anywhere within the machine's entire 3D working volume. It accounts for the combined geometric errors of all three axes—linear accuracy, straightness, squareness, pitch, roll, and yaw. This single number is the most comprehensive and realistic indicator of a CMM's overall performance and its ability to accurately measure real-world parts.
The initial purchase price of a CMM is only one part of its total cost. The long-term expenses associated with service, maintenance, calibration, and training can easily exceed the initial capital outlay. A professional-grade tool is backed by a robust support ecosystem that minimizes downtime and ensures the machine delivers value throughout its operational life. Evaluating these factors is essential for calculating the true Total Cost of Ownership (TCO).
A CMM is not a "set it and forget it" tool. Regular calibration is required to ensure its measurements are accurate and traceable to national standards. You must assess the availability and quality of the manufacturer's service network. Is there local, factory-trained support available? Do they offer ISO/IEC 17025 accredited calibration? This accreditation is a formal recognition of competence and is often a requirement for suppliers in the aerospace, medical, and automotive industries. Inquire about the standard frequency of re-certification and the cost of the associated service contracts.
Different CMM designs have different maintenance requirements. For example, traditional machines use air bearings, which provide frictionless motion but require a constant supply of clean, dry compressed air. This represents an ongoing utility cost. Newer designs may use mechanical linear guideways, which eliminate the need for an air supply but have mechanical components that can eventually wear. Evaluate the design for reliability and serviceability. Are common wear parts readily available? Is the design easy to service, or does it require a specialist for simple tasks?
A powerful CMM that no one knows how to use properly is a wasted investment. The hidden cost of a steep learning curve can be substantial, leading to programming bottlenecks and underutilization. Evaluate the training programs offered by the supplier. Do they offer basic operator training as well as advanced programming courses? Is application support available to help you develop inspection routines for your most challenging parts? A strong local support team that can partner with you during implementation is invaluable and significantly reduces adoption risk.
Consider how the measurement tool will fit into your broader digital manufacturing ecosystem. A professional CMM should be more than a standalone quality checkpoint. It should be an integrated data hub. Can the software output data in formats that are easily consumed by your Product Lifecycle Management (PLM) or Enterprise Resource Planning (ERP) systems? This connectivity enables a closed-loop quality process, where inspection data is used not just to accept or reject parts, but to provide feedback that improves the upstream design and manufacturing processes.
Selecting the right professional Three Coordinate Measurement Tool requires a strategic approach that looks far beyond the spec sheet. It's about building a decision matrix that weights these five key features based on your unique operational reality. An aerospace components manufacturer might prioritize 5-axis capability and accredited calibration, while a high-volume producer of medical devices might place more emphasis on software automation and SPC integration. A facility making heavy castings will value shop-floor robustness and thermal compensation above all else.
Ultimately, the "best" tool is the one that strikes the optimal balance between advanced technical capability and the practical demands of your production environment, software ecosystem, and personnel skills. It must be a tool that empowers your team, streamlines your workflow, and provides a clear return on investment by reducing scrap, increasing throughput, and delivering actionable process insights.
As a final step, don't just rely on demonstrations. The most effective way to validate your choice is to demand an on-site benchmark. Provide the vendor with your most complex or problematic part and challenge them to prove their machine's capability in your facility, using your data. This real-world test is the ultimate confirmation of a wise investment.

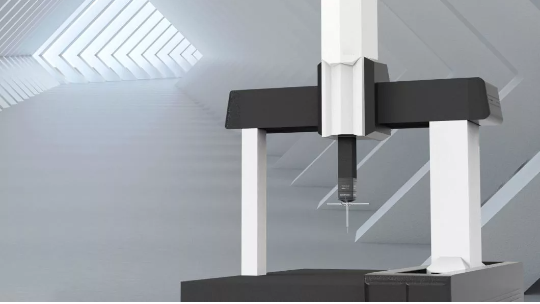

A: The primary difference is accuracy versus flexibility. A traditional bridge CMM is a stationary machine, often built on a large granite base, offering the highest level of accuracy and repeatability. It's ideal for final inspection in a lab or quality-controlled environment. A portable CMM, like an articulating arm, offers much greater flexibility to measure large parts in-situ on the factory floor but typically has lower accuracy than a fixed-bridge machine.
A: The industry standard, as guided by ISO 10360, is an annual calibration by an accredited service provider. However, the optimal frequency depends on usage intensity, the stability of the operating environment, and any specific quality system requirements (e.g., for aerospace or medical). Many companies perform interim checks more frequently using a certified artifact to ensure the machine remains within specification between annual services.
A: Yes, absolutely. CMMs equipped with high-speed laser line scanners are excellent tools for reverse engineering. The scanner captures a dense point cloud of the object's surface, which can then be exported from the metrology software as a mesh file (like STL). This mesh can be imported into CAD software to create a full-featured 3D model from a physical part that has no existing design data.
A: Not anymore, in most cases. While the highest-end laboratory CMMs still perform best in a climate-controlled clean room, modern shop-floor CMMs are designed to operate in typical production environments. Features like active thermal compensation, covered guideways, and advanced vibration isolation systems ensure they deliver accurate and reliable results despite temperature fluctuations, dust, and nearby machinery.
A: The Return on Investment (ROI) timeline can vary from 6 to 24 months, depending on the application. The ROI is driven by tangible cost savings, such as significant reductions in scrap and rework, elimination of inspection bottlenecks which increases throughput, and automation of manual inspection tasks which frees up operator time. By providing faster feedback to the manufacturing process, a CMM helps produce better parts from the start, generating substantial savings.
