The world of industrial metrology is no longer defined by calipers and micrometers. We have moved from simple manual verification to a new era of automated, data-driven quality control. This transition is critical because precision is not just a goal; it's a major economic factor. Measurement can account for up to 15% of total production costs, making every micron count. The challenge has shifted from basic linear checks to validating complex 3D geometric features with absolute certainty. This guide is for decision-makers who need to understand this shift. It provides a clear framework for evaluating when and why to transition from traditional hand tools to a modern Three Coordinate Measurement Tool, ensuring your quality control process becomes a competitive advantage, not a bottleneck.
Precision Gap: Traditional tools are limited by human variance and the Abbé Principle; a Coordinate Measuring Machine (CMM) provides sub-micron repeatability.
Complexity Handling: Manual tools excel at simple 2D dimensions, while CMMs are essential for complex GD&T (Geometric Dimensioning and Tolerancing).
Economic Impact: While CMMs require higher initial CAPEX, they reduce TCO by eliminating manual logging errors and reducing scrap rates in high-volume production.
Operational Bottlenecks: Manual measurement often creates production delays; automated CMMs streamline throughput via SPC (Statistical Process Control) integration.
For decades, handheld measuring tools like calipers, micrometers, and height gauges were the gold standard of quality control. They are portable, relatively inexpensive, and effective for simple checks. However, in modern manufacturing where tolerances are tighter than ever, their inherent limitations can introduce significant risk and inefficiency.
One of the most significant yet often overlooked sources of error in handheld tools is the Abbé Principle. This metrological law states that for maximum accuracy, the measurement axis must be collinear with the scale's axis. When you use calipers, it's nearly impossible to ensure the jaws are perfectly aligned with the instrument's scale. Any slight angular deviation, known as parallax error, directly translates into an inaccurate reading. This is compounded by inconsistent operator pressure, skill level, and even viewing angle, introducing human variance that is impossible to eliminate completely.
Materials expand and contract with temperature changes. A part measured at the beginning of a shift in a cool shop may have different dimensions by midday. While this affects all measurements, handheld tools lack any form of automatic compensation. A high-quality micrometer can be sensitive to the heat from an operator's hand, let alone ambient factory temperatures. This thermal expansion can easily push a borderline part out of tolerance, leading to false positives or negatives in quality checks. CMMs, by contrast, often operate in controlled environments or have sophisticated temperature compensation sensors to nullify these effects.
The measurement process doesn't end when a number is read. That data must be recorded, analyzed, and stored. With manual tools, this process is fraught with risk.
Manual Entry Errors: A technician might write down "1.253" instead of "1.235." These simple transposition errors can go unnoticed until it's too late.
Legibility Issues: Illegible handwriting on paper logs can lead to incorrect data entry into a digital system later on.
Lack of Real-Time Analysis: Data collected manually cannot be instantly fed into a Statistical Process Control (SPC) system. Trends indicating tool wear or machine drift are only discovered after hours or days of analysis, long after non-conforming parts have been produced.
This creates data silos where valuable quality information is trapped on paper, preventing proactive process improvements.
Perhaps the most obvious shortcoming of traditional tools is their inability to measure complex geometry. A height gauge can check a flat surface, and calipers can measure a simple outer diameter. But how do you verify the profile of a turbine blade, the concentricity of multiple internal bores, or the complex form of an injection-molded part? Hand tools are fundamentally one-dimensional or two-dimensional devices. They cannot easily or accurately measure non-linear surfaces, organic shapes, or the intricate relationships between features defined by Geometric Dimensioning and Tolerancing (GD&T).
A Three Coordinate Measurement Tool, or CMM, represents a fundamental leap from linear checking to holistic geometric validation. It operates not by measuring a single distance, but by defining an object's geometry within a three-dimensional Cartesian (X, Y, Z) coordinate system. This capability unlocks a level of insight and certainty that manual tools simply cannot provide.
At its heart, a CMM is a sophisticated machine designed to move a measuring probe with extreme precision along three orthogonal axes. The machine's software records the X, Y, and Z coordinates of each point the probe touches. By collecting a series of these points on a part's surface, the CMM can mathematically construct geometric features—planes, circles, cones, cylinders, and complex surfaces. This collection of points creates a high-fidelity "digital twin" of the physical part, which can then be compared against its original CAD model to identify any deviations.
The method used to collect coordinate data varies, and choosing the right one depends on the application's demands for precision versus speed.
Tactile Probes: These are the most common and generally most accurate types. A physical stylus, often with a ruby or silicon nitride tip, makes contact with the part's surface. The system registers the exact coordinate at the moment of contact. They are ideal for high-tolerance applications and measuring features like internal bores where line-of-sight is an issue.

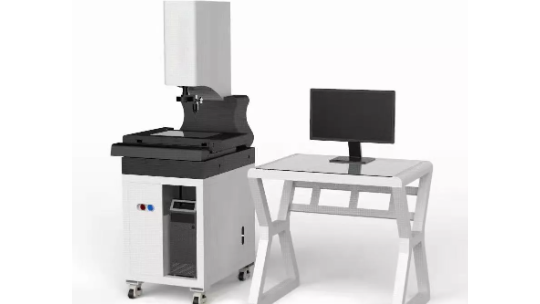

Non-Contact Probes: These use technologies like lasers or structured light to capture millions of data points rapidly, creating a dense "point cloud" of the part's surface. While typically less accurate for individual points than tactile probes, they are incredibly fast and excel at capturing complex, free-form surfaces. They are perfect for reverse engineering or inspecting delicate parts that cannot be touched.
The hardware of a CMM is only half the story. The true power lies in its metrology software. This software transforms raw coordinate data into actionable intelligence. Instead of a simple pass/fail judgment, it provides deep analytical insights.
CAD-to-Part Comparison: The software can overlay the measured data directly onto the nominal CAD model, creating a color map that visually highlights deviations. This allows engineers to see exactly where and by how much a part is out of spec.
Automated GD&T Analysis: It can automatically calculate complex geometric tolerances like position, profile, and runout, which are extremely difficult and time-consuming to verify manually.
SPC Integration: The software seamlessly exports data to Statistical Process Control (SPC) systems, enabling real-time monitoring of manufacturing processes and predictive quality control.
CMMs are not one-size-fits-all. Different configurations are designed for specific environments and applications.
Bridge CMMs: The most common type, known for high accuracy and stability. They are typically housed in temperature-controlled quality labs and are ideal for inspecting small to medium-sized parts with tight tolerances.
Cantilever CMMs: These offer easy access for loading and unloading parts, often used for inspecting sheet metal or other relatively flat components.
Portable Arm CMMs: These articulated arms provide flexibility for measuring large or immovable objects directly on the shop floor or in the field. They trade some of the ultimate precision of a stationary CMM for incredible portability and versatility.
When deciding between traditional methods and a CMM, it's essential to compare them across the key performance indicators that impact your bottom line: accuracy, throughput, consistency, and data reliability. The difference is not merely incremental; it is often an order-of-magnitude improvement that redefines what is possible in quality assurance.
The most fundamental difference lies in achievable precision. A skilled operator using high-quality vernier calipers might reliably measure down to .001 inches (about 25 microns). A precision micrometer can push this to around .0001 inches (2.5 microns), but this is highly dependent on operator skill and environmental conditions. In contrast, a stationary lab-grade Three Coordinate Measurement Tool routinely achieves accuracies of 1.2 microns (μm) or less. This sub-micron capability is not just a number; it's what enables the validation of components for aerospace, medical implants, and high-performance automotive industries, where the slightest deviation can have critical consequences.
In a high-volume production environment, inspection speed can quickly become the primary bottleneck. Manually checking a complex part with multiple features using calipers, gauges, and micrometers can take many minutes, or even hours. During this time, your CNC machines may have produced dozens more parts. If a problem is found, all parts produced during the inspection delay are now suspect. An automated CMM program, once written, can execute the same complex inspection routine in a fraction of the time, consistently and without fatigue. This allows for higher inspection frequency, enabling you to catch process drift much earlier and keep pace with modern production cycle times.
| Feature | Traditional Hand Tools (Calipers, Micrometers) | Coordinate Measuring Machine (CMM) |
|---|---|---|
| Typical Accuracy | .001" to .0001" (25μm to 2.5μm) | <0.0001" (<2.5μm), often sub-micron (e.g., 1.2μm) |
| Repeatability | Low to Medium (Operator dependent) | Very High (Computer controlled) |
| Speed for Complex Parts | Very Slow (Multiple tools and setups required) | Fast (Automated routine checks all features) |
| GD&T Capability | Very Limited / Impossible for complex callouts | Excellent (Fully automated analysis) |
| Data Logging | Manual, prone to error | Automated, digital, real-time |
| Initial Cost | Low | High |
Repeatability is the measure of consistency. If two different inspectors measure the same part, will they get the same result? A Gage Repeatability and Reproducibility (GR&R) study often reveals shocking levels of variance with manual tools. This variance comes from differences in operator technique, pressure, and judgment. A CMM eliminates this problem. The computer-controlled probe follows the exact same measurement path with the exact same touch pressure every single time, regardless of who initiates the program. This guarantees that your measurement data is consistent and reliable across multiple shifts, operators, and even facilities.
For regulated industries like Aerospace (AS9100), Medical Devices (ISO 13485), and Automotive (IATF 16949), documentation is not optional. Proving compliance requires detailed, traceable, and accurate measurement records. Manually creating these reports is a laborious process that is vulnerable to error. A CMM's software automates this entire workflow. It can generate comprehensive inspection reports, complete with graphical analysis and statistical process control (SPC) data, at the click of a button. This digital documentation provides an unimpeachable audit trail, satisfying the strictest industry standards and protecting your business from compliance risks.
Investing in a Coordinate Measuring Machine is a significant capital expenditure, and the decision must be justified by clear business drivers. The return on investment (ROI) isn't just about measuring faster; it's about mitigating risk, reducing waste, optimizing labor, and enabling growth into more demanding markets.
The cost of a measurement error can be catastrophic. A famous example is the F-22 Raptor program, where minor errors in the application thickness of its radar-absorbent material, measured in just a few millimeters, led to massive cost overruns and performance issues. This illustrates a critical point: the cost of inadequate measurement is almost always higher than the cost of proper metrology equipment. By providing an unparalleled level of certainty, a CMM acts as an insurance policy against shipping non-conforming parts, which can lead to product recalls, liability claims, and severe damage to your brand reputation.
The core principle of modern quality control is prevention, not detection. Traditional inspection methods often catch errors long after a batch of bad parts has been made. A CMM integrated into the production workflow allows for high-frequency, automated inspection. This near-real-time feedback enables you to detect tool wear, machine misalignment, or material variations almost as they happen. "Catching it early" means you can correct the process before significant scrap is generated. The ROI can be calculated directly by tracking the reduction in scrap and rework costs, which often pays for the machine faster than expected.
Manual inspection is a repetitive, labor-intensive task. It ties up skilled technicians who could be contributing more value elsewhere. Implementing a CMM doesn't necessarily eliminate jobs; it elevates them. You transition your team from tedious manual checking to higher-value roles like CMM programming, data analysis, and process optimization. This shift allows you to leverage your human capital more effectively, focusing their expertise on improving the manufacturing process itself rather than just policing its output.
Not every part requires a CMM. The key is to determine the crossover point where the investment becomes justified. A useful decision framework is the "Volume vs. Complexity" matrix.
| Scenario | Part Complexity | Production Volume | Recommended Tool | Justification |
|---|---|---|---|---|
| Quadrant 1 | Low (Simple brackets, spacers) | Low (Prototypes, one-offs) | Traditional Hand Tools | Fast, cheap, and sufficient for basic dimensions. CMM would be overkill. |
| Quadrant 2 | Low (Simple machined parts) | High (Mass production) | Go/No-Go Gages, Automated Vision | Dedicated gaging is faster and cheaper for checking a few simple features at high speed. |
| Quadrant 3 | High (Complex molds, prototypes) | Low (Tooling, R&D) | Coordinate Measuring Machine | Manual measurement is impossible or too slow. CMM is essential for validation. |
| Quadrant 4 | High (Turbine blades, medical implants) | High (Serial production) | Automated CMM Cell | The combination of complexity and volume makes automated CMM inspection a necessity for throughput and compliance. |
Purchasing a CMM is just the first step. To realize its full potential, you must plan for the total cost of ownership (TCO) and address the operational requirements. Overlooking these realities can lead to an underutilized machine and a disappointing return on investment.
High-accuracy stationary CMMs are sensitive instruments. Their granite tables and metal frames are susceptible to thermal expansion, which can compromise accuracy. For this reason, lab-grade bridge CMMs require a dedicated, temperature-controlled environment, typically maintained at 20°C (68°F) with a stability of ±0.5°C. This often means building a special metrology lab with dedicated HVAC systems. In contrast, shop-floor hardened CMMs and portable arms are designed with built-in temperature compensation, offering more flexibility at the cost of some ultimate precision. You must factor the cost of environmental controls into your initial budget.
Operating a CMM requires a different skillset than using a micrometer. The transition is from physical tool handling to software-driven programming. Your team will need comprehensive training on the CMM's software, which often involves learning a programming language like DMIS (Dimensional Measuring Interface Standard). They must also be proficient in reading and interpreting complex engineering drawings with GD&T callouts and understanding how to create stable measurement programs. Plan for this learning curve and invest in quality training for your key personnel to avoid the CMM becoming an expensive paperweight.
A CMM is a precision asset that requires ongoing care to maintain its accuracy. This involves more than just keeping it clean.
Annual Calibration: To ensure traceability and accuracy, CMMs must be professionally calibrated and certified annually according to standards like ISO 10360. This service is a recurring operational expense.
Probe and Stylus Consumables: Probe heads, styli, and other components are consumables that wear out over time and need replacement. Damaged styli can be a significant source of measurement error.
Software Updates: Metrology software licenses often require annual maintenance fees to receive updates, bug fixes, and technical support.
These long-term costs must be included in your TCO calculation.
To achieve the vision of Industry 4.0, your CMM cannot operate in a vacuum. The data it generates is most valuable when it flows seamlessly into your broader digital ecosystem. Before purchasing, you must ensure the CMM's metrology software can communicate effectively with your existing systems. Can it import CAD files directly from your Product Lifecycle Management (PLM) platform? Can it export quality data in a format compatible with your Enterprise Resource Planning (ERP) or Manufacturing Execution System (MES)? Solving these integration challenges upfront is crucial for automating data workflows and maximizing the strategic value of your investment.
The choice between traditional measuring instruments and a modern CMM is a strategic one, defining your company's commitment to quality, efficiency, and future growth. The transition reflects a move from simple verification to comprehensive validation. Traditional tools remain valuable for quick, low-tolerance checks and on-the-spot assessments where portability is key. However, for high-precision, data-heavy production environments dealing with complex geometries and strict compliance demands, they are no longer sufficient. The Three Coordinate Measurement Tool is no longer a luxury for elite manufacturers; it has become a foundational requirement for any organization serious about competing in the landscape of Industry 4.0. Your next step should be a thorough audit of your current scrap rates, inspection bottlenecks, and quality compliance risks. This data will form the core of a compelling business case for embracing automated, data-driven metrology.
A: A CMM is orders of magnitude more accurate. While a high-end micrometer can achieve accuracy around 2.5 microns (μm) under ideal conditions, it is subject to operator variance. A lab-grade CMM consistently delivers sub-micron accuracy, often in the range of 1.2 μm or better. This level of precision is computer-controlled and highly repeatable, eliminating the human error factor inherent in handheld tools.
A: Not necessarily a cleanroom, but it depends on the type. High-accuracy, lab-grade bridge CMMs require a temperature-controlled environment (typically 20°C ±0.5°C) to maintain their stated precision. However, many "shop-floor hardened" CMMs are designed with thermal compensation and more robust construction, allowing them to operate accurately in a typical manufacturing environment without a dedicated lab.
A: While a CMM is a powerful "all-in-one" solution for complex inspection, it may not be practical to replace every caliper. Manual tools are still excellent for quick, simple checks directly at a machine or for parts with very loose tolerances. The best approach is often a hybrid one, using the CMM for critical dimensions, first article inspections, and complex geometry, while retaining calipers for in-process spot checks.
A: The ROI timeline varies greatly based on application, but it's driven primarily by scrap reduction and throughput gains. In high-volume production with tight tolerances, the ability to catch manufacturing errors early can reduce scrap so significantly that the CMM pays for itself in 18-24 months. For lower-volume, high-value parts (like in aerospace), the ROI is more about risk mitigation and enabling capabilities you otherwise wouldn't have.
A: No, there is a trade-off between mobility and ultimate precision. Stationary bridge CMMs, operating in controlled labs, represent the pinnacle of accuracy (often around 1.2μm). Portable CMM arms are incredibly flexible for measuring large parts on the shop floor but have a lower accuracy, typically in the range of 12μm to 75μm depending on the model and arm length. They are perfect when the part can't come to the lab, but the bridge CMM is the choice for the tightest tolerances.
