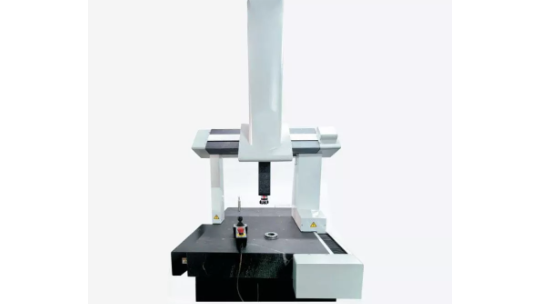

In high-precision manufacturing, the Three Coordinate Measurement Tool (CMM) is the final arbiter of quality. It provides the definitive data that validates a component's adherence to design specifications. When this critical asset goes down, the consequences ripple far beyond the quality lab. Treating its upkeep as an afterthought is a direct path to eroded profit margins, compromised data integrity, and costly production delays. Unplanned downtime stops the flow of validated parts, creating bottlenecks that halt entire assembly lines. This guide provides a comprehensive framework for proactive CMM care. You will learn to shift from a reactive repair cycle to a strategic lifecycle management approach, protecting your capital investment and ensuring your measurement data remains undeniably trustworthy.
ROI Protection: Preventative maintenance (PM) reduces Total Cost of Ownership (TCO) by avoiding emergency repairs and premature replacement.
Accuracy Stability: Precision is a product of environmental control and mechanical hygiene, not just software compensation.
Tiered Responsibility: Effective maintenance requires a clear division between daily operator tasks and annual professional certifications.
Component Focus: Specific protocols for air bearings, styli, and optical scales are non-negotiable for tool longevity.
Viewing preventative maintenance as a cost center is a fundamental misunderstanding of its value. It is an investment in reliability, accuracy, and long-term profitability. A proactive strategy directly counteracts the high costs associated with unexpected equipment failure and performance degradation.
A reactive approach means you only act when the CMM fails. This leads to catastrophic downtime, emergency repair fees, and expedited shipping costs for parts. The total expense often far exceeds that of a planned maintenance schedule. Proactive maintenance involves scheduled, minimal downtime at your convenience. This allows you to perform necessary checks and cleaning, preventing major issues before they cripple your operations. The cost-benefit analysis is clear: a few hours of planned upkeep save days of unplanned, high-stress recovery.
Your measurement data is only as reliable as the machine that produces it. Consistent maintenance ensures your CMM performs within its specified accuracy limits. This is crucial for compliance with industry standards like ISO 10360, which governs the acceptance and reverification of coordinate measuring machines. A documented service history with NIST-traceable calibration certificates provides auditable proof of your commitment to quality. Without it, your measurement data can be challenged, potentially leading to product recalls or loss of certifications.
A Coordinate Measuring Machine is a significant capital asset. Like any high-value equipment, its resale or trade-in value is directly tied to its condition and service history. A machine with a complete, documented log of regular maintenance and professional calibrations will command a much higher value than one with a spotty or non-existent record. Protecting the physical condition and performance of your CMM through diligent care is a direct method of retaining the value of your initial investment.
Over time, unmaintained CMMs experience "measurement drift." This slow degradation of accuracy can lead to incorrect pass/fail decisions. Good parts may be flagged as rejects (false negatives), wasting materials and production time. Worse, bad parts may be approved (false positives), leading to downstream assembly problems or field failures. Regular maintenance stabilizes the machine's performance, ensuring that measurement results are consistent and reliable. This reduces costly rework and scrap, directly optimizing production throughput.
The performance of a CMM is profoundly influenced by its immediate surroundings. Before you even touch the machine itself, ensuring a stable and clean environment is the most critical step toward long-term accuracy and reliability. Software can compensate for some predictable errors, but it cannot overcome a fundamentally unstable operating environment.
The granite table and bridge structure of a CMM provide its metrological foundation. Granite is chosen for its thermal stability, but it still expands and contracts with temperature changes. A fluctuation of just one or two degrees Celsius can cause microscopic changes in the machine's geometry, introducing significant measurement errors. To combat this, the CMM room should have a dedicated climate control system capable of maintaining a stable temperature, typically 20°C ±1°C (68°F ±2°F), 24/7.
CMMs utilize air bearings to allow the bridge and probe to move with near-zero friction. These bearings depend on a consistent supply of clean, dry, and oil-free compressed air. Contaminants in the air supply are a primary cause of failure.
Moisture: Can cause internal corrosion and clog the fine orifices of the air bearings.
Oil: Can create a sticky film on the guideways, attracting dust and causing the bearings to drag or "stick."
Particulates: Can score the machine's precision guideways, leading to permanent damage and costly repairs.
A multi-stage filtration system, including a refrigerated air dryer and coalescing filters, is essential to meet the manufacturer's air quality specifications.
External vibrations from sources like forklifts, stamping presses, or even heavy foot traffic can be transmitted through the floor to the CMM, degrading its measurement capability. These vibrations introduce "noise" into the measurement data, reducing repeatability. The solution involves identifying and isolating these sources where possible. For high-precision applications, a CMM may require a dedicated foundation or be placed on an active or passive vibration damping system to ensure a quiet measurement environment.
The CMM lab should be treated like a cleanroom. Airborne dust, humidity, and even oils from human skin can have a detrimental effect. Dust and grit can abrade sensitive guideways and optical scales. High humidity can lead to corrosion on exposed metal surfaces. Operators should be trained to handle components with care, avoid touching critical surfaces, and maintain a high standard of cleanliness within the entire CMM enclosure.
Effective CMM maintenance is not a single event but a continuous process involving different personnel with distinct responsibilities. A tiered framework clarifies who does what and when, ensuring that daily care, periodic checks, and annual certifications work in harmony. This approach empowers operators to handle routine tasks while reserving complex procedures for trained technicians.
| Frequency | Task Description | Responsible Party |
|---|---|---|
| Daily | Perform pre-shift inspections of the stylus for wear or damage. Clean guideways and other critical surfaces. Verify air pressure is within the specified range and drain air filters. | Operator |
| Weekly / Monthly | Conduct repeatability tests using a qualified artifact (like a sphere or gauge block) to check for performance drift. Inspect and clean controller air filters and cooling fans. Update the maintenance log with all activities and observations. | Supervisor / Lead Operator |
| Annual | Execute a full system calibration using a laser interferometer to verify geometric accuracy. Perform deep cleaning of internal mechanics, check belt tension, and inspect wiring. Apply necessary software patches and firmware updates. | OEM / Certified Service Professional |
These are simple, non-invasive tasks that form the first line of defense against performance degradation.
Pre-shift Inspection: Before any measurements, visually inspect the probe head and stylus. Look for any signs of cracking, bending, or material buildup on the stylus tip. A compromised stylus is a primary source of inaccurate data.
Cleaning Guideways: Using a lint-free wipe and a manufacturer-approved solvent (typically 99% Isopropyl Alcohol), gently clean the exposed guideways. This removes dust and oils that can interfere with the air bearings.
Air System Check: Confirm the air pressure gauge reads within the green zone specified in your CMM's manual. If equipped, manually drain the air filter bowl to release any accumulated water.
These tasks require a bit more diligence and are focused on tracking performance over time.
Artifact Testing: Measure a known artifact and compare the results to historical data. A sudden change or a gradual trend in the results can indicate developing mechanical or environmental issues.
Controller Inspection: Power down the machine and inspect the controller cabinet. Clean or replace clogged air filters to prevent overheating of the electronics, a common and avoidable failure.
Logbook Updates: Meticulously record all maintenance activities, test results, and any unusual observations. This log is invaluable for troubleshooting and identifying long-term performance trends.
These complex procedures should only be performed by a certified technician with specialized tools and training.
System Calibration: Using a laser interferometer and other precision artifacts, the technician will measure and correct for any geometric errors in the CMM's travel (e.g., squareness, straightness, and rotational errors), creating a new error compensation map.
Deep Cleaning and Adjustment: This involves removing covers to access and clean internal components like drive belts, motors, and optical scales. The technician will also check and adjust drive belt tension for optimal performance.
Software and Firmware: The service provider will ensure the CMM's control software and firmware are updated to the latest stable versions, providing bug fixes and potential performance enhancements.
While the overall CMM system requires care, a few key components are disproportionately responsible for its accuracy and longevity. Mastering the maintenance protocols for these parts is non-negotiable for any high-performance metrology lab.
The stylus tip is the single point of contact with your workpiece. If it is dirty, worn, or damaged, every measurement will be compromised. "Material pick-up," where microscopic bits of the measured part adhere to the stylus tip, is a common problem.
Prepare Materials: You will need a non-woven, lint-free wipe (like those used for cleaning optics) and a small amount of 99% isopropyl alcohol. For stubborn residue, specialized cleaning putty can be used.
Inspect First: Look at the stylus tip under magnification. Note any visible debris or a dull, non-reflective appearance, which can indicate wear.
Gentle Cleaning: Lightly moisten the wipe with alcohol. Gently pinch the stylus tip with the wipe and rotate it carefully. Do not apply excessive force or side-load the stylus.
Final Check: Re-inspect the tip to ensure it is clean and free of fibers from the wipe.
Air bearings are the heart of the CMM's frictionless movement. Their health depends entirely on clean air and clean guideways. A common mistake is attempting to manually lubricate the guideways. This is strictly prohibited by most manufacturers, as oil attracts contaminants that will clog the bearing orifices. The first sign of a clogging issue is often a "jerky" or hesitant motion in one axis. If you hear a hissing sound or feel resistance when moving an axis by hand (with air pressure on), it's a sign of a severe problem that requires immediate professional service to avoid scoring the granite guideways.
Optical scales are glass strips with incredibly fine graduation markings that the CMM's read heads use to determine position. They are extremely delicate and sensitive to contamination. Dust, oil films, or fingerprints on the scale can block the read head's view, causing position errors or system faults. Cleaning should only be done when necessary and with extreme care, using a lint-free wipe and approved solvent, wiping gently in a single direction along the length of the scale. Never use aggressive solvents or apply scrubbing pressure.
The probe head is a complex and expensive component. It should be handled with the utmost care. "Collision trauma" from unexpected crashes can cause internal damage that isn't immediately visible but leads to poor repeatability. When not in use, probes should be stored in their designated racks or protective cases. Regular automated probe change cycles should be monitored to ensure smooth docking and undocking, preventing undue stress on the connection mechanisms.
Every machine eventually faces a point where standard maintenance is no longer enough to meet modern demands. Understanding when to continue maintaining, when to invest in a retrofit, or when to replace the machine entirely is a critical asset management decision. This choice balances cost, capability, and risk.
A useful rule of thumb is to evaluate your options when the projected cost of a single repair or a year's worth of maintenance exceeds 40-50% of the machine's current market value. At this stage, you are investing significant capital into aging technology with limited potential for improvement. It's the economic signal to explore more strategic options like retrofitting or replacement.
The granite structure of a CMM has an incredibly long lifespan if cared for properly. A retrofit takes advantage of this by replacing the aging "brains" and "senses" of the machine while keeping the stable mechanical frame. This typically involves upgrading:
Controller: Modern controllers offer faster processing, better motion control, and improved thermal compensation algorithms.
Sensors/Probing System: Upgrading from a touch-trigger probe to a scanning probe or a 5-axis system can dramatically increase data acquisition speed and capability.
Software: The latest metrology software provides more powerful analysis tools, intuitive user interfaces, and better integration with modern CAD formats.
A retrofit can deliver near-new performance and capabilities for a fraction of the cost of a new machine.
| Factor | Maintain | Retrofit | Replace |
|---|---|---|---|
| Upfront Cost | Low | Medium | High |
| Capability Uplift | None | Significant | Maximum |
| Downtime | Minimal (for PM) | Moderate (1-2 weeks) | Significant (decommission/install) |
| Risk of Obsolescence | High | Low | Lowest |
Before committing to more repairs, evaluate your future needs. Are you planning to inspect more complex parts? Do you need to increase throughput? If your current CMM's mechanical system cannot support newer, high-speed scanning or 5-axis probing technologies, a retrofit may be the most logical path to gaining that scalability without the full expense of a new machine.
Operating obsolete hardware carries hidden costs. Spare parts for older controllers and drive systems become scarce and expensive. The software may not be compatible with new operating systems or CAD file formats, creating workflow bottlenecks. A critical failure of an obsolete component could lead to extended, indefinite downtime while you search for a replacement part, a risk that a timely retrofit completely eliminates.
Adopting a "maintenance-first" mindset is more than a technical procedure; it's a competitive advantage. It transforms your Three Coordinate Measurement Tool from a potential liability into a consistently reliable source of truth for your manufacturing process. By implementing a structured maintenance program, you protect your investment, ensure data integrity, and optimize production efficiency. The key is to view these practices not as costs, but as essential activities that underpin the quality and profitability of your entire operation.
The most impactful next step is to formalize your approach. Establish a comprehensive Maintenance Management System (MMS) for all your coordinate measurement instruments. This system should clearly define daily, weekly, and annual tasks and assign clear responsibilities. Finally, take a critical look at your current service contracts and operator training programs. Investing in professional calibration and empowering your team with the right knowledge is the ultimate strategy for extending the life and performance of your CMM.
A: The standard recommendation is an annual professional calibration. However, this can change based on usage. A CMM running multiple shifts in a high-production environment may benefit from a six-month cycle. Conversely, a tool in a lab with very light usage might remain stable for longer. The best practice is to adhere to the annual schedule as a minimum and increase frequency if repeatability tests show any signs of drift.
A: The industry-standard and manufacturer-recommended solvent is high-purity (99% or higher) isopropyl alcohol. It effectively removes oils and residues without leaving a film. Always apply it with a clean, lint-free, non-woven wipe. Avoid using general-purpose cleaners, degreasers, or abrasive materials, as they can damage the protective coating on the guideways or leave harmful residues.
A: Yes, but it's crucial to understand the boundaries. In-house teams, specifically trained operators and supervisors, are perfectly suited for daily and weekly tasks like cleaning, air filter checks, and basic performance verification with artifacts. However, annual calibration, geometric error mapping, and any internal mechanical adjustments must be performed by a certified technician with specialized equipment like a laser interferometer.
A: The earliest indicators are often subtle. Watch for a decrease in measurement repeatability; if you measure the same artifact multiple times and the results vary more than usual, it's a red flag. Other signs include unusual motor noises (whining or grinding), "jerky" or hesitant axis movement instead of smooth travel, or an increase in air consumption, which could indicate a leak.
A: High humidity poses a significant risk. It can accelerate corrosion on exposed metal guideways, lead screws, and electronic components. More critically, excess moisture in the compressed air supply can condense inside the air bearings. This can cause them to function poorly and can lead to internal corrosion and blockages, ultimately resulting in costly damage to the machine's motion system.
