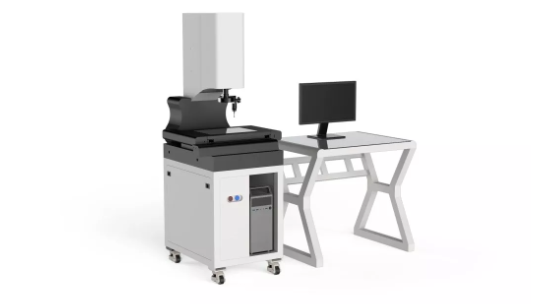

The field of metrology has transformed dramatically, evolving from manual calipers and gauges to the automated precision of modern inspection technology. In high-tolerance manufacturing, where a few microns can mean the difference between success and catastrophic failure, this evolution is not just a convenience—it's a necessity. The Three Coordinate Measurement Tool, or CMM, stands at the forefront of this shift. For sectors like aerospace, medical device manufacturing, and automotive engineering, the era of "good enough" measurement is over. These industries operate in a high-stakes environment where absolute certainty in dimensional accuracy is paramount. This article explores the essential benefits of integrating a CMM into your quality control process, moving it from a cost center to a strategic competitive advantage.
Micron-Level Precision: Eliminates operator variability and ensures sub-thousandth of an inch accuracy.
Operational Efficiency: Drastic reduction in scrap rates and inspection bottlenecks through automated routines.
GD&T Compliance: Essential for verifying complex geometric dimensioning and tolerancing that manual tools cannot capture.
Strategic ROI: Beyond quality, CMMs support Industry 4.0 integration, IP ownership, and reduced legal liability.
Adopting a Coordinate Measuring Machine (CMM) is more than a technical upgrade; it's a fundamental business decision that drives profitability, reduces risk, and strengthens market position. While traditional hand tools have their place, they cannot provide the data integrity and repeatability required by modern quality standards. The business case for a CMM is built on four pillars: cost reduction, operational consistency, risk mitigation, and customer confidence.
One of the most immediate financial benefits of a CMM is its ability to catch dimensional deviations early in the production cycle. In a high-volume manufacturing environment, a slight drift in a machine tool's calibration can result in thousands of out-of-spec parts before the error is caught by manual spot-checks. A CMM automates this process. It can be programmed to run first-article inspections and periodic checks on parts directly from the production line. By identifying trends and dimensional drifts in near-real-time, you can adjust processes proactively. This prevents the mass production of defective components, drastically cutting scrap rates and eliminating costly rework.
Manual gauging is inherently subjective. The way one technician holds a caliper or reads a micrometer can differ slightly from another. Factors like applied pressure, viewing angle, and even the operator's experience level introduce variability into the measurement process. An automated Coordinate Measuring Machine eliminates this human element. Its probing system follows a pre-programmed, optimized path, touching each measurement point with the exact same velocity and pressure every time. This ensures unparalleled repeatability and reproducibility (R&R). The result is a single source of truth for your dimensional data, one that is consistent regardless of who operates the machine or when the inspection is performed.
In industries like aerospace and medical implants, a component failure can have devastating consequences. A CMM provides an objective, traceable digital record of every measurement taken on every critical part. This data serves as irrefutable proof that a component met all design specifications before it left your facility. Should a product recall or legal dispute arise, this robust documentation is your best line of defense. It demonstrates due diligence and adherence to stringent quality standards, significantly lowering your company's liability and protecting its reputation. This digital paper trail is something manual inspection logs can never fully replicate.
For businesses supplying parts to Tier-1 manufacturers or Original Equipment Manufacturers (OEMs), providing proof of quality is non-negotiable. CMM inspection reports offer a level of detail and fidelity that builds immense trust with your partners. Instead of a simple pass/fail checklist, you can provide comprehensive reports with graphical representations of geometric tolerances, statistical process control (SPC) charts, and full dimensional layouts. This data-rich "Proof of Quality" shows your customers that you have a sophisticated and reliable quality control process. It elevates your status from a simple supplier to a trusted strategic partner, opening doors to more valuable contracts.
The true power of a CMM lies in its ability to measure what other tools cannot. Modern components are rarely simple blocks or cylinders; they feature complex curves, freeform surfaces, and intricate internal features. Verifying these geometries against their digital CAD models requires a level of sophistication that goes far beyond the capabilities of hand tools. The CMM excels in this domain, providing comprehensive data on the most challenging parts.
Imagine trying to verify the profile of a turbine blade or the curvature of an orthopedic implant with a micrometer. It's simply impossible. A Three Coordinate Measurement Tool uses a sensitive touch-trigger probe or a non-contact laser scanner to collect thousands of data points across these surfaces. The software then reconstructs the part's geometry digitally and compares it directly to the nominal CAD model. This allows for the inspection of:
Profiles and Contours: Verifying the shape of airfoils, cams, and molds with micron-level accuracy.
Complex Angles: Measuring compound angles and draft angles on cast or molded parts that are inaccessible to protractors.
Curved Surfaces: Analyzing the roundness, cylindricity, and form of non-prismatic features.
Geometric Dimensioning and Tolerancing (GD&T) is the symbolic language used on engineering drawings to define the allowable variation in form, orientation, and location of features. While a caliper can measure a diameter, it cannot tell you if that hole is truly perpendicular to a surface or in the correct position relative to three other datums. CMMs are essential for verifying complex GD&T callouts according to ISO and ASME standards. They can accurately measure:
Position: The true position of a feature relative to a datum reference frame.
Flatness and Straightness: The deviation of a surface from a perfect plane or a line from a perfect axis.
Cylindricity and Roundness: The form of a cylindrical or spherical feature.
Profile of a Surface: How closely a complex surface conforms to its ideal shape.
This capability ensures that parts not only have the right dimensions but also function correctly when assembled.
The accuracy of a CMM is not just about its motors and encoders; it's also about the materials used in its probing system. The stylus—the part that makes physical contact with the component—must be incredibly rigid to prevent deflection. Even a microscopic bend in the stem during measurement can introduce significant errors. This is why high-performance styli use:
Ruby or Silicon Nitride Tips: These materials are exceptionally hard and smooth, reducing friction and wear while ensuring a precise contact point.
Ceramic or Carbon Fiber Stems: These materials offer an excellent stiffness-to-weight ratio, minimizing bending and thermal instability compared to steel.
Understanding the material science behind the metrology ensures you select the right probing configuration for the job, preserving the integrity of your measurements.
Sometimes, a physical part exists without any corresponding CAD data or drawings. This is common with legacy components or competitor products. A CMM can be used for reverse engineering by systematically scanning the part's surface. Using either a contact probe or a high-speed laser scanner, the machine gathers a dense "point cloud" of data. This point cloud can then be converted into a mesh and ultimately a fully parametric CAD model. This capability is invaluable for remanufacturing obsolete parts, creating digital archives, or performing competitive analysis.
When selecting a CMM, one of the most significant decisions is choosing between a traditional 3-axis system and a more advanced 5-axis system. The right choice depends on your application's complexity, throughput requirements, and budget. Each technology offers distinct advantages for different manufacturing scenarios.
A standard 3-axis CMM operates along the X, Y, and Z linear axes. To measure features at different angles, the probe head must rotate and index into a new position, a process that can be time-consuming. These systems are highly effective and cost-efficient for inspecting prismatic parts—components with mostly flat surfaces and simple geometric features. They are the workhorses of many quality labs, ideal for high-volume inspection of straightforward components where speed is not the absolute top priority.
A 5-axis CMM adds two rotational axes (A and B) directly to the probe head. This allows the stylus to move continuously around a part, maintaining contact without needing to stop and re-articulate the head. This "head touch" capability dramatically reduces inspection cycle times, as the machine's slower linear axes make fewer movements. 5-axis technology is superior for inspecting complex parts with deep internal features or multiple angled holes, as the probe can reach them in a single, fluid setup. This makes it a preferred choice for high-value industries like aerospace and medical manufacturing.
The primary advantage of 5-axis systems is a massive increase in throughput. In applications like aerospace engine manufacturing, where a single blisk (bladed disk) can have dozens of complex airfoil surfaces, a 5-axis CMM can reduce inspection time from hours to minutes. By eliminating the constant start-stop motion of head indexing, the machine spends more time measuring and less time repositioning. This speed advantage allows for 100% inspection of critical components rather than just sampling, leading to higher quality assurance.
| Feature | 3-Axis CMM | 5-Axis CMM |
|---|---|---|
| Best For | Prismatic parts, simple geometries, high-volume production of less complex components. | Complex parts (e.g., turbine blades, medical implants), intricate internal features. |
| Inspection Speed | Slower, due to "stop-and-go" probe head indexing for angled features. | Significantly faster, thanks to continuous motion of the articulating head. |
| Probe Access | Limited access to deep or angled features; may require longer, less rigid styli. | Excellent access; can use shorter, more rigid styli for higher accuracy. |
| Cost | Lower initial investment. | Higher initial investment, but often provides a faster ROI through increased throughput. |
Beyond the axis configuration, the physical structure of the CMM is critical. It determines the size and weight of the parts you can measure.
Bridge: This is the most common and versatile CMM structure. The bridge moves along two guideways, carrying the Z-axis ram. It offers excellent stability and accuracy for a wide range of small to medium-sized parts, making it the industry standard for general-purpose quality labs.
Gantry: For very large and heavy components, such as automotive body panels, engine blocks, or aerospace structures, a gantry CMM is necessary. In this design, the part remains stationary while a large gantry structure moves over it.
Cantilever: This design features a single support for the moving axis, providing open access on three sides. It is ideal for inspecting smaller, high-precision parts where easy manual or automated loading and unloading is a priority.
The world's most accurate CMM hardware is of little use without powerful, intuitive software to control it. The software is the brain of the system, responsible for everything from programming inspection paths to analyzing data and generating reports. A modern CMM's return on investment is driven as much by its digital capabilities as its mechanical precision. The synergy between hardware and software is what unlocks true operational efficiency.
While the hardware defines the upper limit of a CMM's potential accuracy, the software determines how easily and efficiently you can achieve it. A poor Human-Machine Interface (HMI) can make programming complex parts a frustrating and time-consuming task, leading to operator errors and machine downtime. Great CMM software, however, simplifies complex tasks. It should provide a clear, graphical representation of the part and probe, handle complex GD&T algorithms flawlessly, and allow for on-the-fly adjustments without rewriting the entire program.
A game-changing development in metrology is Model-Based Definition (MBD). In a traditional workflow, engineers create a 2D drawing with dimensions and tolerances to accompany a 3D CAD model. In an MBD workflow, all of this Product Manufacturing Information (PMI)—including GD&T, datums, and surface finish notes—is embedded directly into the 3D CAD file itself. Advanced CMM software can read this PMI data and automatically generate a complete, collision-free inspection program. This automates what was once a manual, error-prone process, reducing programming time from days to hours and ensuring the inspection routine perfectly matches the design intent.
Every minute a CMM is not measuring parts is a minute of lost productivity. Offline programming allows technicians to create and test inspection routines on a separate computer while the CMM continues its work on the shop floor. The software uses a digital twin of the machine and part to simulate the entire measurement process. This virtual environment lets the programmer:
Verify the probe path is efficient and collision-free.
Test different probing angles and stylus configurations.
Debug the program before it ever runs on the physical machine.
This practice dramatically increases machine utilization and throughput, as the CMM is only stopped for setup and execution, not for programming.
CMMs are no longer isolated islands of quality control. In a modern Industry 4.0 smart factory, they are critical data-gathering nodes. The measurement data generated by a CMM can be fed directly into Statistical Process Control (SPC) software. This software analyzes dimensional trends over time, providing actionable insights. For example, by tracking the slow, consistent change in a hole's diameter, SPC software can predict when a cutting tool is wearing out and needs to be replaced—before it starts producing out-of-spec parts. This creates a digital feedback loop that enables predictive maintenance and process optimization, turning quality control into a proactive, data-driven function.
Purchasing a high-precision CMM is only the first step. To achieve and maintain micron-level accuracy, you must control the environment in which it operates and establish rigorous operational protocols. Neglecting these factors can easily negate the benefits of your investment, leading to unreliable data and measurement errors. True metrology success depends on a holistic approach that considers the entire ecosystem surrounding the machine.
Temperature is the enemy of precision measurement. Almost all materials expand when heated and contract when cooled. A CMM is typically calibrated at a standard temperature of 20°C (68°F). If a part is measured at a different temperature, thermal expansion or contraction can introduce significant errors. For this reason, lab-grade CMMs must be housed in temperature-controlled rooms. Furthermore, parts brought in from a warmer or cooler shop floor must be allowed to "soak" or acclimate to the lab's temperature for several hours. This ensures thermal stability in both the machine and the workpiece, which is critical for accurate and repeatable results.
A CMM's accuracy is not permanent. Over time, mechanical wear, environmental changes, or even minor seismic events can cause it to drift from its calibrated state. Establishing a rigorous calibration and maintenance schedule is non-negotiable for maintaining traceability to national standards (like those from NIST). This typically includes:
Daily Probe Calibration: Before starting any critical measurements, the active probe tip must be calibrated against a reference sphere to determine its exact diameter and center point.
Annual Machine Verification: A certified technician should perform a full machine alignment and accuracy verification using laser interferometers or step gauges. This recertifies the machine's volumetric accuracy across its entire measurement envelope.
The point of contact with the part—the stylus—is a common source of measurement error if not managed correctly. Best practices for stylus and probe management are essential for data integrity.
Use Standardized Ball Diameters: Ensure the exact diameter of the ruby ball tip is entered into the software. A small error here will be magnified in the measurement results.
Keep Styli Short and Rigid: Use the shortest, most rigid stylus possible for the application. Longer styli are more prone to bending and vibration, which introduces errors.
Use Counterweights: When using complex, heavy probe configurations like a star stylus, add the appropriate counterweights to the probe head. This ensures the head remains balanced and moves smoothly.
The initial purchase price of a CMM is only one part of the total investment. A comprehensive budget should account for the Total Cost of Ownership (TCO) over the machine's lifespan. This includes several ongoing costs:
Software Updates and Licensing: Annual fees for software maintenance and access to the latest features.
Operator Training: Investing in foundational and advanced training for your metrology team to unlock the full potential of the machine and software.
Annual Certification: The cost of bringing in a certified technician for annual calibration and verification.
Consumables and Spares: Budgeting for styli, probes, and other components that may wear out or break.
Understanding the TCO provides a more realistic financial picture and ensures the metrology department is adequately funded for long-term success.
Integrating a Coordinate Measuring Machine into your quality control process fundamentally transforms it from a potential bottleneck into a powerful competitive advantage. It moves your operations beyond simple pass/fail checks, providing the rich, actionable data needed for process optimization, risk mitigation, and building unparalleled customer trust. The precision offered by these systems is not just a technical specification; it is the foundation of quality in a data-driven manufacturing landscape where there is no room for error. The long-term value lies in its ability to reduce scrap, enhance product reliability, and provide the objective proof required in the world's most demanding industries. When selecting a tool, remember to prioritize not only the hardware's accuracy but also the software's scalability and compatibility with your digital ecosystem.
A: A contact CMM uses a physical probe with a stylus (like a ruby ball) that touches the surface of the part to record data points. It is known for very high accuracy on geometric features. A non-contact CMM uses technologies like laser scanners or structured light to capture millions of data points rapidly without touching the part. This method is faster and ideal for delicate, flexible parts or for capturing complex freeform surfaces for reverse engineering.
A: The industry standard is to have a full volumetric error mapping and calibration performed by a certified service provider annually. However, daily or pre-shift probe qualification using a reference sphere is a crucial best practice. For high-stakes projects or after any event that could affect alignment (like moving the machine), an interim verification may also be necessary to ensure continued accuracy and traceability.
A: Yes, but it depends on the type of CMM. Traditional lab-grade CMMs require a clean, temperature-controlled environment to maintain accuracy. However, many manufacturers now offer "shop-floor hardened" CMMs. These machines are built with thermal compensation systems, sealed bearings, and vibration dampening to withstand the harsher conditions of a production environment, allowing for in-process inspection right next to the machine tool.
A: The accuracy of a modern CMM is exceptional and is typically measured in microns (μm), which are thousandths of a millimeter. A general-purpose CMM in a controlled lab might have an accuracy of 1.5 to 5 microns (approximately 0.00006 to 0.0002 inches). Ultra-high precision laboratory models can achieve sub-micron accuracy, which is essential for calibrating gauges and other standards.
