In modern manufacturing, precision is not just a goal; it is the battlefield where competitive advantages are won and lost. Moving beyond simple measurement, quality assurance has become a cornerstone of operational excellence. The choice of metrology equipment, specifically a Three Coordinate Measurement Tool, can dictate the efficiency and profitability of your entire production line. An incorrect decision doesn't just represent a poor investment; it translates directly into rejected batches, costly production bottlenecks, and significant wasted capital. This guide provides a robust technical and commercial framework to help you navigate this critical choice. We will equip you with the knowledge to select a Coordinate Measuring Machine that not only meets your current tolerances but also offers the scalability to support your business's future growth and innovation.
The 4:1 Rule: Your measurement tool should be at least four times more accurate than your tightest part tolerance.
Environment Dictates Architecture: Shop-floor vs. lab-grade environments fundamentally change the required machine stability and thermal compensation.
Software is the Bottleneck: Hardware collects data, but software integration (CAD/MBD) determines the speed of the feedback loop.
TCO Over Sticker Price: Account for hidden costs like specialized flooring, climate control, and certified programming staff.
The first step in selecting the right measurement tool is to precisely define what you need to measure and to what degree of accuracy. This foundational analysis prevents overspending on unnecessary precision or, conversely, investing in a machine that cannot validate your most critical components.
Your measurement volume, or the machine's XYZ travel, must accommodate your largest part. However, a common mistake is to only consider current production. A strategic approach involves analyzing your five-year product roadmap. Are you planning to enter new markets or produce larger assemblies? Buying a machine that is too small can be a crippling limitation down the road. A widely accepted threshold is around 1.8 meters (6 feet). Parts smaller than this can often be measured by a range of systems, including larger portable arms. Once your components exceed this size, you almost certainly need a stationary system like a gantry or large bridge CMM, which involves a significant jump in cost and infrastructure planning.
Accuracy is the primary function of a CMM. To ensure your measurements are meaningful, you must follow an industry-standard precision ratio. The 4:1 rule is a common guideline, stating that the measurement instrument should be at least four times more accurate than the tolerance of the feature being measured. For example, to reliably verify a feature with a tolerance of ±0.04 mm, your CMM's measurement uncertainty should be no greater than 0.01 mm. For highly critical applications, such as in aerospace or medical devices, a more stringent 10:1 ratio is often required. Applying this principle ensures that the machine's inherent uncertainty does not consume a significant portion of your part's acceptable tolerance zone, giving you true confidence in your pass/fail decisions.
The geometry of your parts plays a crucial role in machine selection. Simple prismatic shapes with basic features like planes, holes, and slots can be measured effectively with standard touch-probes. However, complex geometries—such as turbine blades, molds, or medical implants—feature freeform surfaces and intricate profiles. These parts require high-density data point collection to accurately assess form errors like flatness, circularity, and profile tolerance. This need often pushes the selection toward machines equipped with high-speed scanning probes or non-contact sensors that can capture thousands of points in seconds.
The material of your component influences the type of sensor you can use. Part rigidity is a key factor. A robust steel or aluminum part can easily withstand the light force of a contact probe. In contrast, a soft rubber gasket, a thin sheet metal stamping, or a delicate plastic component may deform under contact, leading to inaccurate readings. For these materials, non-contact sensors like laser scanners or vision systems are superior. Additionally, the surface finish matters. Highly reflective or transparent surfaces can pose a challenge for optical and laser sensors, sometimes requiring a temporary matte coating or favoring a traditional touch-probe solution.
The physical structure or architecture of a CMM is designed for specific applications and environments. Choosing the right frame is a balance between accuracy, volume, accessibility, and the intended operating location. Each design has inherent strengths and weaknesses that must align with your production needs.
| CMM Type | Primary Application | Key Strength | Consideration |
|---|---|---|---|
| Bridge CMMs | General purpose, high-accuracy inspection in quality labs. | High versatility, excellent accuracy-to-footprint ratio. | Typically requires a climate-controlled environment. |
| Gantry Systems | Very large, heavy parts (e.g., aerospace frames, engine blocks). | Massive measurement volume, high payload capacity. | Requires specialized, reinforced foundations and significant space. |
| Horizontal Arm CMMs | Large, thin-walled components (e.g., automotive bodies, large stampings). | Excellent accessibility for side features; can be installed in duplex. | Lower accuracy than bridge CMMs of similar size. |
| Portable Measuring Arms | In-situ measurements on the shop floor, large part inspection. | Flexibility, ability to measure parts on the machine tool. | Lower accuracy than stationary CMMs; operator-dependent. |

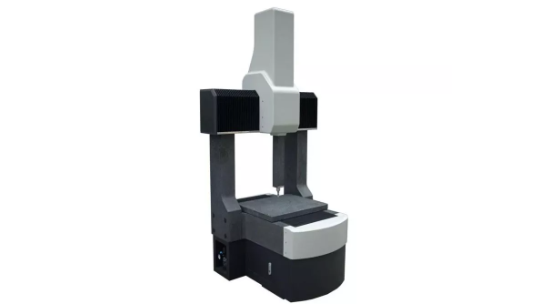

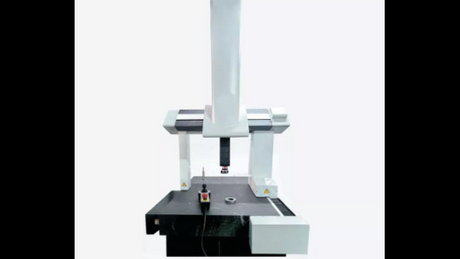

The bridge-style Three Coordinate Measurement Tool is the most common architecture in manufacturing. Its design, where the measuring probe moves along a rigid bridge structure, offers an excellent balance of accuracy, speed, and flexibility. These machines are the workhorses of quality labs worldwide, suitable for a vast range of small-to-medium-sized parts. Their inherent stiffness provides high accuracy, but they perform best in a stable, climate-controlled environment to minimize thermal effects.
When parts are simply too large or heavy for a bridge machine, gantry systems are the solution. In this design, the CMM is built around the part, with the bridge supported by large pillars. This architecture is common in the aerospace, defense, and energy sectors for inspecting massive components like aircraft fuselages or large gearboxes. The primary consideration for a gantry CMM is infrastructure; they require a dedicated, deep, and stable concrete foundation to maintain their geometric accuracy.
Optimized for inspecting long, thin parts, horizontal arm CMMs are a staple in the automotive industry. They are frequently used to measure car bodies ("body-in-white"), large stampings, and dashboards. Their open structure provides easy access for loading large components. Often, they are installed in pairs (a duplex configuration) to measure both sides of a vehicle simultaneously. While extremely effective for their intended purpose, their cantilevered arm design makes them inherently less rigid and accurate than a comparable bridge or gantry machine.
Portable CMMs, or "articulating arms," trade the ultimate accuracy of a stationary machine for incredible flexibility. They allow you to bring the measurement device to the part, rather than the other way around. This is invaluable for inspecting components that are too large to move, for taking measurements directly on a CNC machine, or for reverse engineering tasks on the shop floor. While their accuracy is improving, it is still influenced by operator technique and is generally lower than that of a fixed CMM.
The final architectural decision is the mode of operation. A manual CMM requires an operator to physically move the probe to each measurement point. This is suitable for one-off inspections, simple parts, or small workshops. A CNC (Computer Numerical Control) or DCC (Direct Computer Control) CMM uses motors to drive the machine automatically based on a pre-written inspection program. If you have high-volume production with repeating parts, a CNC machine is essential. It eliminates operator variability, dramatically increases throughput, and enables unattended inspection.
The probe system is the "business end" of the CMM, the part that actually gathers the data. The sensor technology you choose must be matched to your part's geometry, material, and required accuracy. A state-of-the-art CMM frame with the wrong probe is an inefficient and often ineffective tool.
These are the most common and cost-effective probes. A touch-trigger probe works by sending a signal the instant its stylus makes contact with the part's surface. It is ideal for measuring discrete points to define features like planes, circles, and lines on rigid components. They are simple, robust, and highly repeatable, making them an excellent choice for standard geometric dimensioning and tolerancing (GD&T) checks.
When you need to understand the form of a surface—not just its location—an analog scanning probe is necessary. Instead of taking single points, these probes drag along the part's surface while maintaining a constant measurement force. They collect thousands of data points per second. This high-density data is essential for:
Form Error Analysis: Precisely measuring circularity, cylindricity, flatness, and profile of a surface.
Complex Profiles: Verifying the shape of airfoils, cams, and other freeform surfaces against a CAD model.
Reverse Engineering: Capturing detailed surface data to create a digital model of an existing part.

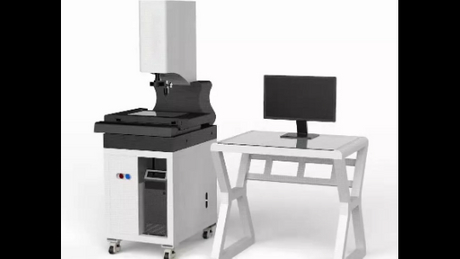

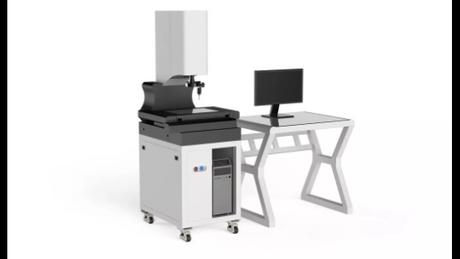

Non-contact sensors solve measurement challenges where physical contact is impossible or undesirable. Laser line scanners project a line of laser light onto a surface and use a camera to triangulate the 3D coordinates of thousands of points along that line. Vision systems use a high-resolution camera to measure features on small, 2D, or delicate parts. These technologies are critical for measuring:
Soft or deformable materials like rubber and foam.
High-speed surface mapping of large panels.
Features that are too small or fragile for a tactile stylus.
The probe head holds the sensor and positions it to measure different features on a part. A fixed head offers the highest accuracy and rigidity because it has no moving parts. It is ideal when all features can be accessed from a single orientation. A motorized indexing head, however, offers maximum flexibility. It can automatically rotate and articulate to hundreds of unique positions, allowing a single program to measure complex parts with features on all sides without manual intervention. This dramatically improves automation and throughput, though it introduces a small amount of additional mechanical uncertainty compared to a fixed head.
A CMM is only as accurate as its environment allows it to be. Temperature, vibration, and air quality can all introduce significant errors into your measurements. A thorough evaluation of your facility is just as important as the evaluation of the machine itself.
The traditional home for a high-accuracy CMM is a climate-controlled quality lab, maintained at 20°C (68°F) with low humidity. This provides the most stable conditions for metrology. However, modern manufacturing demands faster feedback, pushing measurement closer to the point of production. This has led to the development of "shop-hardened" CMMs. These machines include features designed to withstand the harsher shop floor environment, such as:
Protective bellows and covers for guideways.
Intrinsic or active temperature compensation systems.
Pressurized enclosures to keep contaminants out of mechanical components.
Even with these features, placing a CMM in an uncontrolled environment will always involve a compromise in ultimate accuracy.
Temperature fluctuation is the biggest enemy of precision measurement. As temperature changes, both the part being measured and the CMM itself expand or contract. CMMs use precision glass or metal scales, known as grating rulers, to determine the position of the probe. For maximum stability, these scales should be made from materials with a very low coefficient of thermal expansion (CTE), such as Zerodur or carbon fiber. Furthermore, advanced CMMs use a network of temperature sensors on the machine's axes and on the part itself to build a real-time thermal compensation model, mathematically correcting for expansion and contraction.
Vibrations from nearby machinery—such as stamping presses, forklifts, or CNC machines—can travel through the floor and introduce "noise" into CMM measurements, appearing as poor repeatability. Before installation, a site survey should assess floor stability. If ambient vibration is too high, you must invest in a mitigation system. Passive systems use elastomeric pads or air springs to isolate the CMM from low-frequency vibrations. Active vibration isolation systems use sensors and actuators to electronically cancel out incoming vibrations in real time, offering the highest level of protection.
Many CMMs use air bearings to allow for frictionless, smooth travel along their axes. These bearings require a steady supply of clean, dry compressed air. Any oil, water, or particulate contamination in the air supply can damage the bearings and guideways, leading to costly repairs and machine downtime. Similarly, the CMM's controller relies on clean, stable electrical power. A dedicated circuit with surge protection is a minimum requirement to protect the sensitive electronics from factory-floor power fluctuations.
The most accurate hardware in the world is useless without powerful, intuitive software to control it and interpret its data. Modern quality control is data-driven, and your CMM software is the central hub for collecting, analyzing, and distributing critical dimensional information throughout your organization.
The foundation of modern inspection is comparing measurement data to the nominal design, which lives in a 3D CAD model. While most CMM software can import generic file formats like IGES or STEP, these are translated files that can lose critical data or introduce small geometric errors. A superior approach is a Direct CAD Interface (DCI), which allows the software to read the native CAD file (e.g., from SolidWorks, CATIA, or NX) directly. This ensures that the design intent is perfectly preserved and eliminates a potential source of error.
The industry is rapidly moving toward a "paperless" quality workflow known as Model-Based Definition (MBD). In an MBD environment, all Product and Manufacturing Information (PMI), including GD&T, tolerances, and surface finish notes, is embedded directly within the 3D CAD model, making it the single source of truth. Your CMM software must be capable of reading and interpreting this MBD data. This streamlines the programming process, reduces human error from misinterpreting 2D drawings, and creates a seamless digital thread from design to inspection.
A Coordinate Measuring Machine should do more than just sort good parts from bad parts. It should be a tool for process improvement. The most effective CMM software integrates directly with Statistical Process Control (SPC) packages. As the CMM measures parts, the data is fed automatically into the SPC system, which tracks trends and process capability in real time. This allows engineers to identify when a manufacturing process is drifting out of specification and make corrective adjustments *before* any scrap parts are produced.
CMM software must serve two distinct user groups. On one hand, it needs to be simple enough for a shop-floor operator to load a part, select a program, and run an inspection with minimal training. This "walk-up-and-measure" capability is key to maximizing throughput. On the other hand, it must provide deep analytical power for metrologists and quality engineers. These power users need advanced tools for complex alignments, in-depth data analysis, and creating robust, efficient inspection programs. The ideal software package balances these needs with a customizable, user-friendly interface.
The sticker price of a CMM is only one part of the total investment. A savvy buyer looks beyond the initial capital expenditure to evaluate the Total Cost of Ownership (TCO) over the machine's lifespan. A cheaper machine with high operating costs can quickly become more expensive than a premium model.
When budgeting for a CMM, be sure to account for these often-overlooked expenses:
Calibration and Maintenance: CMMs require annual professional calibration to ensure they are performing to specification. Budget for a service contract.
Training and Labor: Basic operator training is usually included, but advanced programming requires specialized skills. The salary of a dedicated CMM programmer is a significant operational cost.
Environmental Control: If the machine requires a dedicated, climate-controlled room, the cost of building and maintaining that environment (HVAC, utilities) must be included.
Fixturing: You will need a system of clamps, plates, and fixtures to hold parts securely and repeatably for measurement.
Probes and Styli: Styli are consumables that wear out or break and will need to be replaced regularly.
If you have an older CMM, you may not need a full replacement. The mechanical structure of a CMM frame can last for decades. Often, the controller, software, and probing systems are the components that become obsolete. A controller and software retrofit can breathe new life into an old frame for a fraction of the cost of a new machine, providing modern capabilities like CAD-based programming and advanced sensor support. This path is an excellent option if the existing machine frame is mechanically sound and still meets your volume and accuracy needs.
The return on investment (ROI) for a CMM comes from more than just reducing scrap. Calculate the value of increased throughput. How much time is saved by automating a manual inspection process? By moving inspection to the shop floor, can you reduce the time parts spend waiting in a quality lab queue? A modern CMM can break an inspection bottleneck, allowing your entire production line to move faster and increasing your overall capacity and profitability.
Your CMM is a critical piece of equipment; downtime can halt shipments. Evaluate the vendor's support network as thoroughly as you evaluate the machine. Ask critical questions: What is their guaranteed service response time? Where are their spare parts depots located? Do they have a local team of application engineers who can help with complex programming challenges? A strong support contract and a responsive vendor are essential forms of insurance for your investment.
Choosing the right Three Coordinate Measurement Tool is a strategic decision that impacts quality, efficiency, and profitability. By moving beyond a simple price comparison and adopting a structured evaluation, you can ensure your investment serves you for years to come. The process can be summarized into a clear decision-making framework: first, define your non-negotiable accuracy and volume requirements. Next, select the machine architecture and sensor technology that best fits your parts and operating environment. Finally, analyze the software ecosystem and the total cost of ownership to ensure the solution aligns with your business goals.
Your final step should be a "Part-Off" or benchmark test. Provide your most challenging production part to your shortlisted vendors and have them measure it on the exact machine configuration you are considering. This real-world performance test is the ultimate validation, cutting through marketing claims and verifying that the machine can truly meet your needs.
A: The industry standard is an annual calibration by a certified technician. This verifies the machine's geometric accuracy and ensures it conforms to specifications like ISO 10360-2. For machines under heavy use or in critical applications, a more frequent six-month cycle may be warranted. Regular interim checks using a master artifact can also help monitor the machine's performance between formal calibrations.
A: Yes, it is possible with a "shop-hardened" CMM. These models are designed with features like insulated covers, shielded guideways, and multi-sensor thermal compensation to operate in fluctuating temperatures. However, there is always an accuracy trade-off. While thermal compensation can correct for linear expansion, it cannot fully mitigate the complex thermal gradients that can cause a machine's frame to distort, so a stable environment will always yield the most accurate results.
A: The primary difference is the trade-off between accuracy and data density. A CMM, especially with a touch probe, excels at providing highly accurate (micron-level) data for discrete geometric features like holes, planes, and cylinders. A 3D scanner excels at quickly capturing millions of points to define the overall shape and form of a freeform surface. CMMs are generally more accurate, while scanners are faster for capturing dense surface data.
A: The most important standard for CMMs is ISO 10360-2, which specifies the procedures for verifying the performance of the machine for measuring linear dimensions. The manufacturer's stated accuracy should always be specified according to this standard. This ensures a fair, standardized comparison between different machines. Additionally, the calibration service should be accredited to ISO/IEC 17025, which guarantees traceability to national metrology standards.
